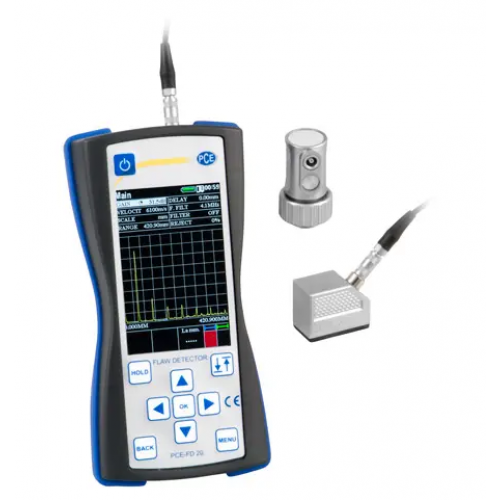

PCE-FD 20 is a portable ultrasonic flaw detector with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based defectoscope uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.
- Operating frequency range: 1 ... 10 MHz
- Measured time interval range: 6 ... 1000 microseconds (µs)
- Sound velocity: 1000 ... 9999 m/s
- Implements shadow, echo and mirror-shadow testing methods
- Features a USB interface for downloading data to PC for detailed analysis
- Lightweight
- Battery or electric power
- 1.5 m long probe cable
| Technical specifications |
Operating frequency range | 1 ... 10 MHz |
Measure time interval range (scan duration) | 6 ... 1000 microseconds (µs) |
Sound velocity range | 1000 ... 9999 m/s |
Deviation of measurement of time intervals | Not exceed ± 0.025 µs |
Max. deviation of amplitude of signals at receiver input in 0 ... 110 dB range | Not exceed ± 0.5 dB |
Testing gain region | 125 dB |
Averaging over the quantity of starts | 1 ... 16 |
Range of time-variable gain (TVG) / Number of control points TVG | 40 dB / 15 |
Duration of excitation pulse to load | 0 ... 0.5 µs |
Amplitude of excitation pulse to 50 Ohm load, not less | 100, 200, 300 |
Operating frequency range of receiver at -3 dB | 1 ... 10 MHz |
Deviation of amplitudes of input signals in 10 ... 100% range of screen height | Not more than 1 dB |
Scanning | 1 ... 1000 µs |
Scanning delay | 0 ... 2000 µs |
Measurement range of time intervals | 0 ... 1000 µs |
Prism of probe delay | 0 ... 15 µs |
Automatic signaling of defects (AFS) | Dual-gate |
Setting range of AFS gates | 0 ... 2000 µs |
Adjusting thresholds of AFS gates | 0 ... 100% |
Detection of signals (receiver) | Positive half-wave, radio mode |
Dimensions of device (approx.) | 80 x 162 x 35 mm / 3.14 x 6.37 x 1.37" |
Dimensions display (approx.) | 48 x 74 mm / 1.88 x 2.91" |
Power supply | 100 ... 250 V AC or 3 x 1.5 V AA batteries |
Weight (approx.) | 250 g / 0.55 lb (without batteries) 1 x PCE-FD 20 flaw detector |
