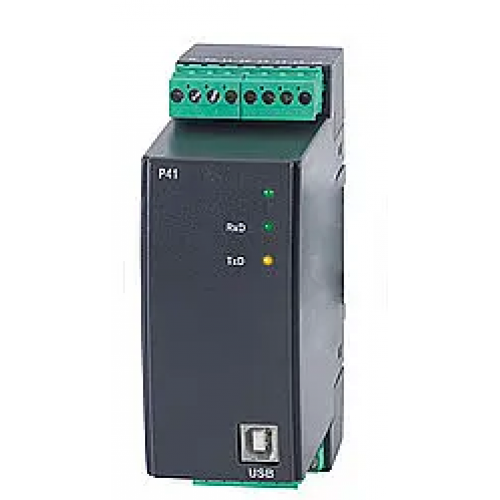

PCE-P41 Power Converter
Analog output, RS485 Modbus interface and memory for up to 9,000 measured values
Analog output, RS485 Modbus interface and memory for up to 9,000 measured values
The PCE-P41 power converter is used to convert single-phase power parameters into standard signals. This DIN rail-mountable power converter has a freely programmable analog output, RS485 Modbus interface and memory for up to 9,000 measured values. The power converter is configurable via the USB interface and capable of direct or indirect measurement.
***Please select the power supply voltage from the drop-down menu above before ordering.***
- Single-phase power
- Current or voltage output
- Direct and indirect measurement
- Configurable via USB
- RS485 Modbus interface
- Memory for up to 9,000 measured values
- Easy to mount on the DIN rail
| ||||||||||||||||||||||||||||||||||
| Output (selectable) | -20 ... 20 mA | |||||||||||||||||||||||||||||||||
| Interface | RS485 Modbus RTU 8N1, 8N2, 8E1, 8O1 | |||||||||||||||||||||||||||||||||
| Programming interface | USB Modbus RTU 8N1 | |||||||||||||||||||||||||||||||||
| Dimensions | 45 x 100 x 120 mm / 1.7 x 3.9 x 4.7 in | |||||||||||||||||||||||||||||||||
| Mass | 200 g / 0.45 lb | |||||||||||||||||||||||||||||||||
| Degree of protection | IP40 | |||||||||||||||||||||||||||||||||
| Power supply | 85 ... 253 V AC / DC 20 ... 50 V AC / DC | |||||||||||||||||||||||||||||||||
| Operating conditions | -10 ... 55 °C / 14 ... 131 °F 0 to 95% RH | |||||||||||||||||||||||||||||||||
| Storage conditions | -30 ... 70 °C / -22 ... 158 °F 0 to 95% RH | |||||||||||||||||||||||||||||||||
| Measurement category | CAT III / 300 V | |||||||||||||||||||||||||||||||||
1 x PCE-P41 power converter
1 x user manual
PCE-P41 Single-Phase / 1-Phase Power Converter
- Brand: PCE INSTRUMENTS
- Product Code: PCE-P41 Single-Phase / 1-Phase Power Converter
- Availability: Pre-Order
-
