Building Moisture Meter
Moisture meter with eight spring electrodes / Many scales already deposited /
Moisture meter with eight spring electrodes / Many scales already deposited /
Non-destructive measurement on floors and walls / Large graphic display /
Measurement display both numerical and graphical / Max HOLD function
The building moisture meter is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the building moisture meter are pressed onto the surface to be tested. Within seconds, the building moisture meter will show the moisture content to the operator. Different scales are already stored in the building moisture meter for a wide variety of surfaces. These are available to the operator directly from the building moisture meter.
As another special feature, the building moisture meter has an automatic shutdown. This feature automatically shuts off the meter if the building moisture meter is not used for 5 minutes. This prevents a sudden discharge of the battery in the building moisture meter. Another function of the building moisture meter is the Max HOLD function. This feature only displays the highest reading to the operator.
- For measuring the moisture in concrete and screed
- Numeric and graphical view
- Eight spring electrodes are used for the measurement
- Automatic shutdown
- Ergonomic shape with anti-slip rubber
- Normal measurement and max. HOLD display
| Measuring function | Measuring range |
| Concrete (H2O) | 0 ... 6% |
| Cement screed (H2O) | 0 ... 6% |
| cement screed | 0 ... 4% |
| (Calcium carbide method)* | |
| Anhydrite screed (H2O) | 0 ... 3.5% |
| anhydrite | 0 ... 1.9% |
| (Calcium carbide method)* | |
| Caisson scale | 0.3 ... 15.3 m |
| Relative scale | 0 ... 100% |
| *The calcium carbide method is approximate. | |
| Further specification | |
| Accuracy | ± 0.5% |
| Resolution | 0.1% |
| Display | Graphically monochrome, 128 x 64 pixels, |
| 61 x 33 mm / 2.4 x 1.3 in, backlight | |
| Operating conditions | 5 ... 40°C / 41 ... 104°F |
| Automatic shutdown | After 5 minutes of inactivity |
| Power supply | 2 x 1.5V AA batteries |
| Uptime | About 20 hours |
| Dimensions | 147 x 89 x 33 mm / 5.8 x 3.5 x 1.3 in |
| Weight | Approx. 250 g / < 1 lb (with batteries) |
1 x Building Moisture Meter PCE-PMI 4
1 x Transport case
1 x 2 x 1.5V AA battery
1 x User manual
1 x Transport case
1 x 2 x 1.5V AA battery
1 x User manual

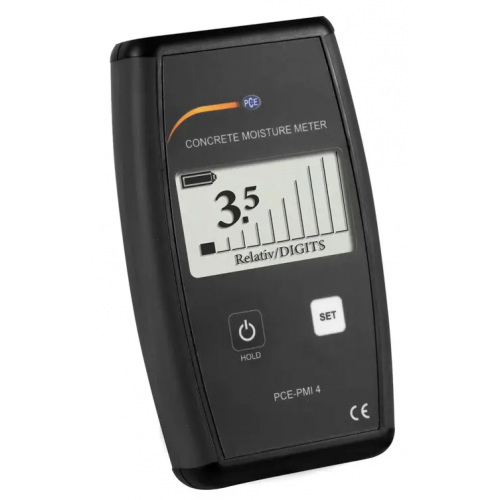

PCE-PMI 4 Building Moisture Meter
- Brand: PCE INSTRUMENTS
- Product Code: PCE-PMI 4 Building Moisture Meter
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
