• Test capacity of up to 10μF – that’s up to 40 km or 25.8 miles of cable at reduced frequency and voltage
• Internal tanδ option with automatic results interpretation
• One minute burn after fault detection
• Automatic frequency adjustment based on cable length
• Adjustable DC pulse rates of 1:3 and 1:4
• IEEE compliant withstand testing for new installations up to 25 kV
• IEEE 400.2 compliant maintenance testing up to 35 kV
• IEC 60229 compliant sheath testing up to 20 kV DC

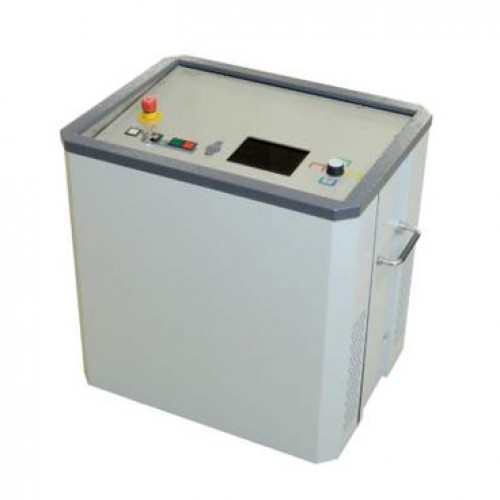

The VLF Sine Wave 45, with optional integrated tanδ, is a compact system for commissioning, testing and condition analysis of medium-voltage cables. This unit performs very low frequency (VLF), DC, and sheath integrity testing as well as sheath fault pinpointing when combined with the optional ESG NT step voltage probe. Ideal for both routine testing and complicated diagnostics, the VLF45 has a multi-purpose design with a continuous duty cycle.

For 0.1 Hz sine wave, rectangular or DC voltage tests, the VLF45 provides enhanced voltage quality and stability. In the event of excessive charge current integrated breakdown detection shuts down the test, ensuring limited damage to the cable. Up to 1000 measurements can be stored in the internal memory and results can be viewed on the unit or downloaded via the USB port to the included Easyprot software for reporting.

An optional internal tanδ is available that automatically evaluates results for PE, XLPE and PILC type cables based on insulation and selected compliance standard. Combined with the optional ESG NT step voltage probe, the VLF45 can pinpoint sheath faults.
