• High surge energy up to 3500 J
• Fast surge rate
• Voltages between 2 and 32 kV

Surge wave generators are, like reflectometers, an essential component of the cable fault location process. They are used for both prelocation and pinpointing.

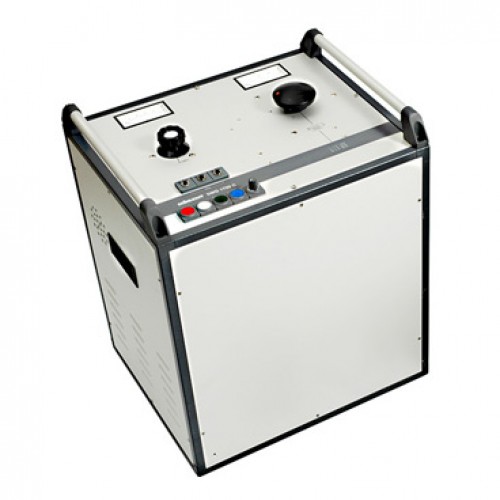

The surge wave generator SWG 1750 is a modular, variable solution available in multiple configurations. Due to its size and power, the SWG 1750 is primarily installed in fault locations systems.

SWG 1750 C with 8 – 16 – 32 kV / 1750 J

SWG 1750 CI with 8 – 16 – 32 kV / 1750 J, incl. leakage current measurement

SWG 1750 C-4 with 2 – 4 kV / 1150 J and 8 – 16 – 32 kV / 1750 J

SWG 1750 CD with 8 – 16 – 32 kV / 3500 J
