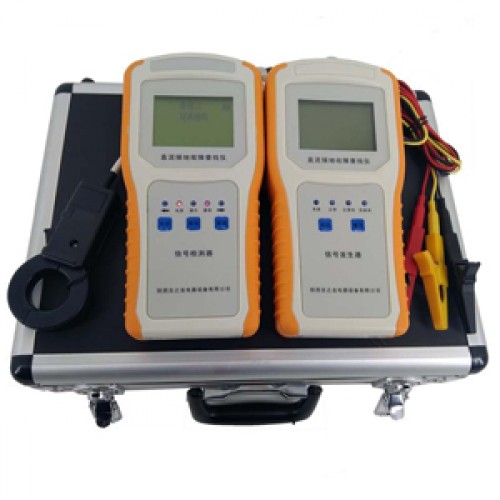

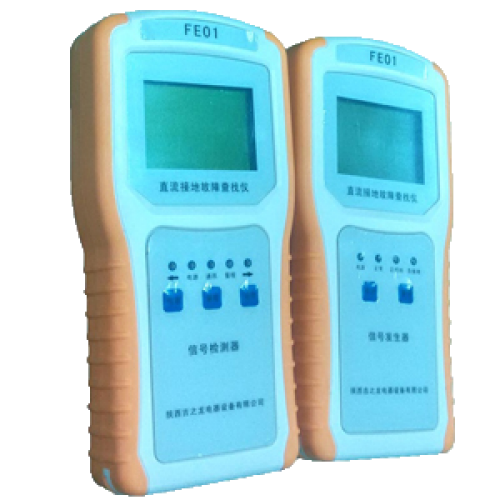

OR-200 not only can provide a solution on accurately testing the faults of the indirect grounding of the direct current system, non-metal grounding, loop grounding, simultaneous grounding of the anode and cathode, balanced grounding of the anode and cathode and multi-point grounding; it also can accurately display the system voltage, voltage to ground and grounding resistance value. It truly eradicates the fear of trouble in the rear for the operating and testing personnel.

The device is primarily based on the system safety. It carries out the test by the reliable method of low frequency signal according to the highest requirements of the industry standard. It can also carry out a lot of on-site practical applications while not affecting the system.

Main Technical Indexes of the Device

1.    The range of the testable grounding resistance:

       When the system voltage is 220V: 0 -500KΩ; When the system voltage is 110V: 0 -250KΩ

       When the system voltage is 48V:    0 -50KΩ; When the system voltage is 24V:  0 -10KΩ

2.    The detection signal ≤ 0.2W (the output power of the signal generator)

3.    The ground impedance distribution capacitance value:

       The ground capacitance single circuit branch≤8uF, the total system ground                                         capacitance≤100uF.

4.   The applicable direct current system voltage:

        220V±10%,110V±10%,48V±10%,24V±10%, or other voltage ranges suggested by

        the user.

5.   The environment temperature: -35℃~+55℃.

6.   The relative humidity: ≤95%

7.   Total mass: 2.8kg ;

8.   The outline dimension (packing chest): 460x240x120(mm)
