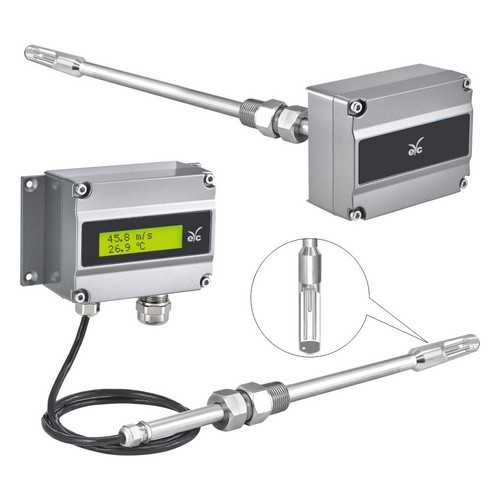

• eYc FTM94/95 Industrial Grade High Accuracy Thermal Mass Flow Transmitter

Feature:Suitable for harsh environments, industrial processes flow monitoring or slightly corrosion compressed air
Input type:Pt20 / Pt300(Air velocity), Pt1000(Temp.)
Measuring range:0 ... 120 Nm/s
Output signal:4 ... 20 mA / 0 ... 10 V / RS-485 / Impulse
Linear accuracy:±1.5%
Installation:Duct type / Remote type
IP rating:IP67

IP67 Rugged stainless steel case, fit in variety harsh environment
Easy to install, imported sensing element, high accuracy, long-term stability
Switch multifunction physical quantities(Air velocity and volume):[m/s]、[ft/s]、[Nm3/h]、[Nm/s]、[L/min]、[m3/min]
LCD Display of air velocity and temperature

FTM94/95 Hot wire thermal air velocity transmitter working at a constant Temp. using King's law heat balance equation for:

e2=a'+b'vn
e:Sensor voltage output(V)
a':
Zero output of constant temperature hot wire anemometer, can use CTA circuit as temperature compensation
b':Sensitivity of the sensor, related to the operating temperature
v:Fluid flow rate
n:0.45 ... 0.5(Standard)


Can be calculated from the formula characteristic curve of constant Temp. hot wire anemometer, special double PT probe and full metal housing design, high accuracy, suitable for a variety of pipe diameters, widely used in industrial fields.
Input type:Pt20 / Pt300(Air velocity), Pt1000(Temp.)
Measuring range:0 ... 120 Nm/s,N:Working condition(Definition:20°C at 1013 hPa);Units can be converted Nm/s(Flow rate) or Nm3/h(Flow)(Option)
Installation angle effect:<3% of the measured value(When the installation angle<10°)
Output signal:4 ... 20 mA / 0 ... 10 V / RS-485 / Impulse
Preset output:Out1:Air velocity;Out2:Impulse
Signal connection:3-wire
Linear accuracy:±1.5%
Warm-up time:<60 sec
Reaction time:t90<5 sec
Load resistance:Current output:≦500 Ω;Voltage output:≧10 KΩ
Probe pressure:16 bar
Power supply:DC 24 V±10%
Electrical connections:M12 metal connector / terminal IP67
Fixed seat:1/2" PT outside thread metal connector
Installation:Duct type / remote type
IP rating:IP67 (Probe);IP65 (Housing)
Certification:CE
Material:Housing:Aluminum alloy;Probe:SUS304
