Accuracy：±1%
Velocity range：0 ... ±10 m/s
Pipe size：DN15 ... DN6000 mm
Liquid temperature：-30 ... 160°C
Liquid type：Water, sea water, waste water, alcohol, beer, various kinds of oil etc which can conduct ultrasound single uniform liquid

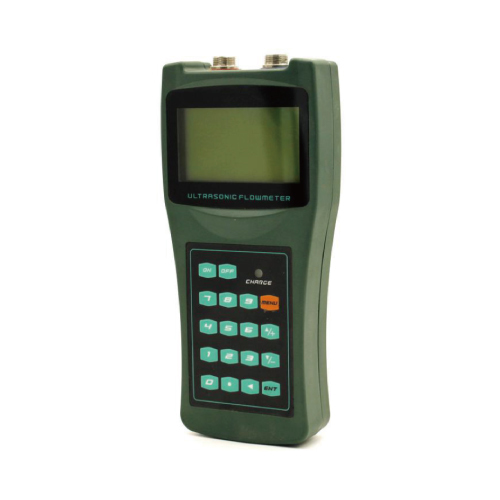

HFUM handheld ultrasonic flow meter is designed to work with clamp-on sensors to measure the liquid flow within a closed pipe without any insertion mechanical parts. Mainly be used for routing inspection or pipe monitoring, very convenience for use. It is controlled by a micro-processor system which contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15 mm up to 6000 mm(Depending on model) and constructed of almost any material.

Download Datasheet
