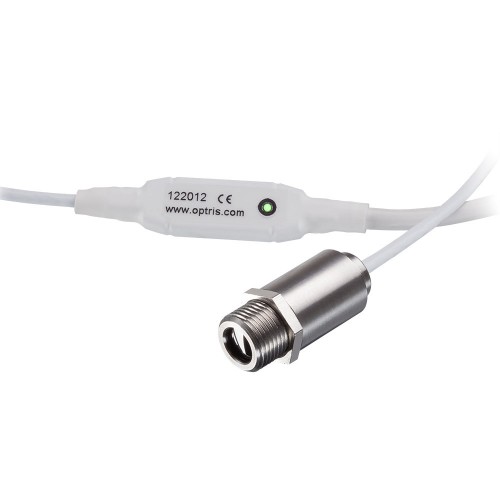

Pyrometer optris CSmicro 3M for temperature measurement of metals

The pyrometer optris CSmicro 3M has been designed for a temperature range from 50°C to 600°C. Its special spectral range of 2.3 µm makes it the ideal IR pyrometer for temperature measurement of metallic surfacesstarting from 50°C and it allows for measurements through glass.

The small infrared measuring head is optimally suited for installation in limited spaces and subsequently makes possible an especially cost-efficient mechanical process integration.

Important specifications

• Temperature range:
  50°C to 350°C (3ML) or 100°C to 600°C (3MH)
• Spectral range: 2.3 µm
• Response time: 25 ms - 999 s
• Price starts from 395 USD (plus VAT)
•

•

• download datasheet
