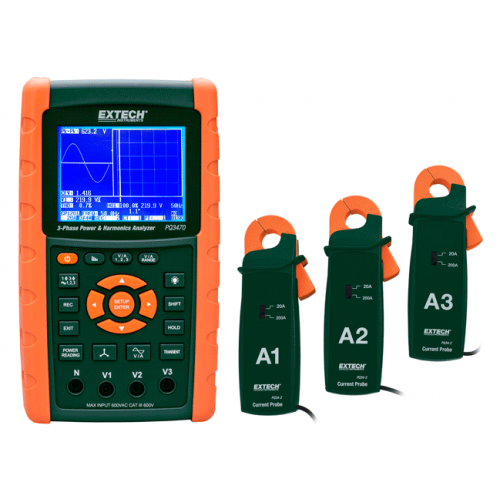

Datalogging Power Analyzer (up to 30,000 sets of measurements) and 200A Current Clamp Probes (set of 3)

The PQ3470 is a 3-phase graphical power and harmonics analyzer/data logger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, captures transient events (including dip, swell, and outage) with programmable threshold (%), a wide sampling rate range (2 seconds to 2 hours), a built in clock/calendar. Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor, three 200A current probes and case.

• Large dot-matrix, sun-readable, graphical, backlit LCD with easy-to-use onscreen menu
• Full system analysis with up to 35 parameters:
  • V (phase-to-phase), V (phase-to-ground)
  • A (phase-to-ground)
  • KW / KVA / KVAR / PF (phase)
  • KW / KVA / KVAR / PF (system)
  • KWH / KVAH / KVARH / PFH (system)
  • Phase angle
• Optional 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
• Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
• Simultaneous display of Harmonics and Waveform
• Analysis of Total Harmonic Distortion (THD)
• Graphic Phase diagram with 3-Phase system parameters
• 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
• Capture Transient events (including dip, swell, and outage) with programmable threshold (%)
• Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
• Wide sampling rate range (2 seconds to 2 hours)
• Built-in Clock and Calendar
• Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor, three 200A current probes and case.
