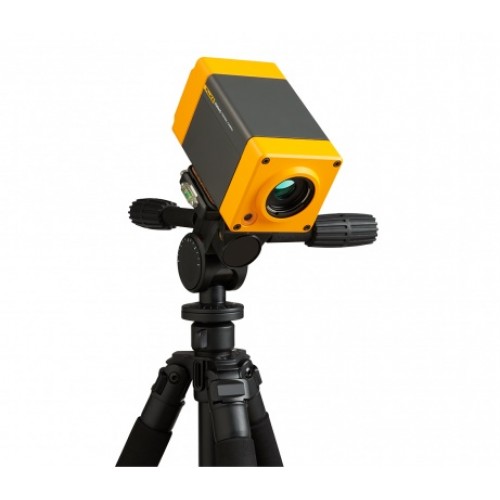

The first ever fully-radiometric, stationary Fluke infrared cameras, equipped with advanced features and software plug-ins to MATLAB® and LabVIEW®. Strategically mount the RSE300 or RSE600 to your workstation for continuous infrared data collection through streaming capabilities. Designed for your research, science and engineering needs, this 640 x 480 resolution infrared camera enhances testing and quality assurance procedures.


Specifications

Key Features
IFOV with standard lens (spatial resolution)0.93 mRad
Detector resolution640 x 480 (307,200 pixels)
Field of view34 °H x 25.5 °V
Minimum focus distance15 cm (approx. 6 in)
Camera focus optionsFocus is adjusted in SmartView® desktop software
Wireless connectivityYes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
IR-Fusion® technologyYes, in SmartView® desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image
Thermal sensitivity (NETD)≤ 0.040 °C at 30 °C target temp (40 mK)*
Filter mode (NETD improvement)Yes
Level and spanSmooth auto and manual scaling, in SmartView®desktop software
Fast auto toggle between manual and auto modesYes, in SmartView® desktop software
Fast auto-rescale in manual modeYes, in SmartView® desktop software
Minimum span (in manual mode)0.1 °C (0.18 °F), in SmartView® desktop software
Minimum span (in auto mode)<1.0 °C (<1.8 °F), in SmartView® desktop software
Built-in digital camera (visible light)5 megapixel industrial performance
Frame rate60 Hz or 9 Hz versions
Digital zoomVariable up to 16x in SmartView® desktop software
*Best possible

Data storage and image capture
Memory optionsConnect to SmartView® desktop software for storage to device or upload to Fluke Cloud™ for permanent storage Capture, save and analyze images in SmartView®desktop software
Image capture, review, save mechanism Image file formatsNon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
SoftwareSmartView® desktop software—full analysis and reporting software Compatible with MATLAB® and LabVIEW® software
Export file formats with SmartView® desktop softwareBitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotationYes, in SmartView® desktop software
Text annotationYes, in SmartView® desktop software
Video recordingYes, in SmartView® desktop software
File formats videoNon-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3), in SmartView® software
Remote display viewingYes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® desktop software on a PC; via WiFi hotspot to the Fluke Connect® app
Remote control operationYes, through ethernet or SmartView® desktop software

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)-10 °C to +1200 °C (14 °F to +2192 °F)
Accuracy± 2 °C or ± 2 %, whichever is greater
Reflected background temperature compensationYes, in SmartView® desktop software
Transmission correctionYes, in SmartView® desktop software
Live line markerYes, in SmartView® desktop software

Color Palettes
Standard palettes8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra

General specifications
Color alarms (temperature alarms)Yes, in SmartView® desktop software–high temperature, low temperature, and isotherms (within range)
Infrared spectral band8 μm to 14 μm (long wave)
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10 % to 95 % non-condensing
Center-Point temperature measurementYes, in SmartView® desktop software
Spot temperatureYes, in SmartView® desktop software–hot and cold spot markers
User-definable spot moarkers3 user-definable spot markers, in desktop software
Center boxExpandable-contractible measurement box with MIN-MAX-AVG temp display, in desktop software
Electromagnetic compatibilityEN 61326-1:2013 IEC 61326-1:2013; (Industrial)
US FCCCFR 47, Part 15 Subpart B Class A
VibrationIEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis
ShockIEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis
Size (H x W x L)8.3 cm x 8.3 cm x 16.5 cm (3.3 in x 3.3 in x 6.5 in)
Weight (battery not included)1 kg (2.2 lb)
Enclosure ratingIEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions)
WarrantyTwo years (standard), extended warranties are available
Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish


Write a review

Note: HTML is not translated!
    Bad           Good

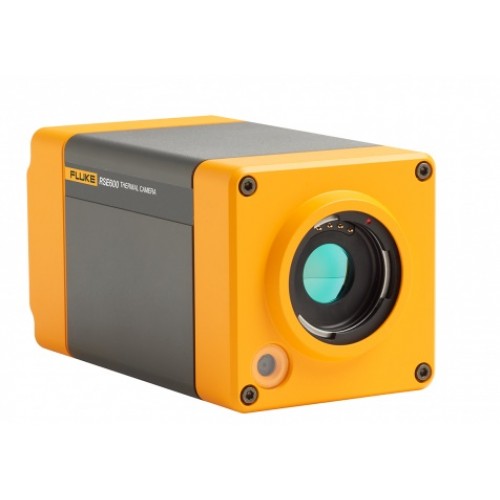

Fluke RSE600 Infrared Cameras
