2、   Main functions and features

Ø   Main Functions

1. Test the battery voltage, conductance and connecting strip resistance online

2. Battery Conductance and Voltage out of range alarm

 3. Battery parameters are marked by group No. to data management expediently.

4. PC analysis software to realize record and follow up battery condition

Ø   Key Features

(1)  High precision online testing, full automatically switch the testing range,         large capacity data storage

（2)Automatically range switching  between testing range 0.000-19990S

（3 Storage 999 group testing data ( each group 999  battery at most )

（4) Storage 500 groups battery setting parameters

（5）battery capacity testing range : 5AH-6000AH

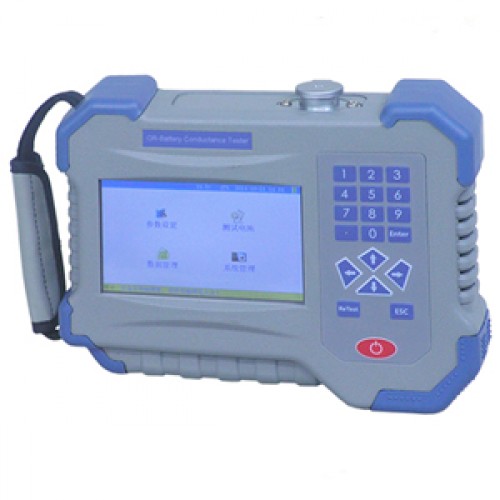

 2. 5 inch color touch LCD screen

3. Display the graph and bar charts analysis function

4. Battery capacity analysis function, do the excellent, good, bad analysis

5. Oscilloscope function: indicate the highest, lowest and average voltage , count the voltage wave

6.Transmit the testing data to PC byMicroSDcard to carry out analysis of battery according to the history data.

7.Strong data management function, do not connect with PC, can use

8. Enhanced over voltage protecting function.

9. Automatically recovery the over current protecting function.

10. Use the SOC chip to improve the tester stability.

11. Large capacity Lithium and power adapter to ensure the power supply

12. Low battery indication to guarantee test precision

13.Small volume, light weight

14.Automatic testing mode, for user convenience

(1) Automatically analyze and judge the battery condition

(2) Building the history database, describe the battery life span curve.

(3) Contrastive analyzing for each battery cell within the same battery string.

(4)All batteries are administrated by different SOH (excellent, good, medium and bad)
