317c Operating Instructions
To measure temperature with this unit follow these simple instructions:
Selecting Fahrenheit or Celsius mode:
- With the unit “OFF” press and continue to hold the ON/ OFF button.
- The LCD will alternate between °F and °C. Release the ON/OFF button when desired measurement mode appears on the LCD
- Remove the protective sheath from the stem.
- Press the ON/OFF button.
- Insert stem into area or object to be tested. At least 1/2” of the stem must be inserted.
| Model 317c Specifications | ||
|---|---|---|
| Temperature Range | -58°F to 300°F (-50°C to 150°C) | |
| Accuracy | +/-2°F (+/-1°C) | |
| Resolution | 0.1°F | |
| Sample Rate | 1 reading every 1.5 seconds | |
| Stem Length | 2.8" | |
| Tip Type | Air | |
| Water Resistant | N/A | |
| Water Proof | N/A | |
| °C / °F Selectable | Yes | |
| Data Hold | Yes | |
| Auto Off | Yes | |
| Battery Type | LR44 | |

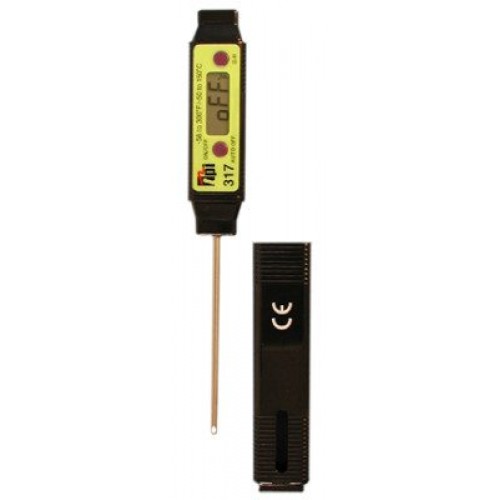

TPI 317c Pocket Digital Thermometer
- Product Code: 317c
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
