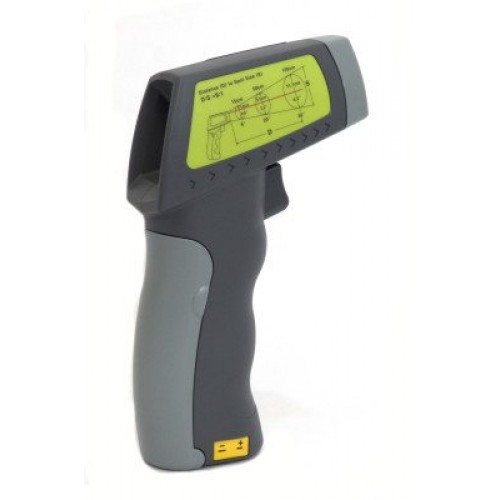

• TPI 381a Combination Non-Contact/Contact Thermometer

The 381a is a non-contact and contact temperature tester with laser sighting to confirm your target. It uses K-type thermocouples with sub-mini connector for contact measurements.

  • Contact and non-contact thermometer
  • Maintain reading on display
  • Laser sighting
  • Backlit display
  • 9:1 distance to spot ratio
  • 0.1 degree resolution
  • 095 emissivity
  • 3 Year Limited Warranty


 Model 381a Specifications
 Temperature Range Non-contact: -4° to 572°F (-20° to 300°C)
 Contact:* -148° to 2192°F (-100° to 1200°C)

 IR Accuracy @ 23°C and 0.95 emissivity ± 5°F (3°C) below 32°F (0°C)
 32°F to 572°F (0°C to 300°C) ± 2% of rdg
 or ± 3.5°F (2°C) whichever is greater

 Contact Accuracy +(0.5% of reading + 3.5°F (2°C)
 Distance to Spot Ratio 9:1
 Response Time 500mS
 Spectral Response 7 to 14um
 Emissivity 0.95 Fixed
 Laser Sighting Output <1mW, Wavelength 645-660nm, Class II Laser
 °F or °C Selectable (slide switch in handle)
 Contact or Non-contact Selectable (slide switch in handle)
 Display Hold Yes
 Operating Temperature 32°F to 120°F (0°C to 50°C)
 Battery Type 9V


* Depends upon temperature probe range
