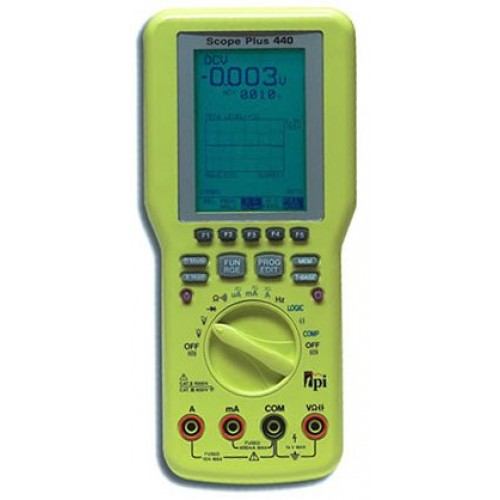

The TPI 440 is a hand-held oscilloscope plus autoranging DMM. The instruments large, backlit LCD display shows a reading and waveform simultaneously. In addition to the standard functions of ACV, DCV, ACA, DCA, Ω, Diode Test and Continuity Buzzer; the 440 measures Frequency (Hz),Capacitance, Logic and Component test functions. The 440 also has RS232 output and software for interfacing with a PC is offered as an optional accessory.

The versatile handheld TPI 440 is a customer winner.

Technicians appreciate the bright backlight of the 3″ x 3″ cold cathode flourescent display and rugged construction inside and out.

6 Instruments in 1:

• Auto Ranging 4,000 Count True RMS DMM: TPI’s 440 has 9 measurement functions and 0.3% basic DC accuracy.
• 1 MHz Oscilloscope: View industrial power signals such as motor controls, UPS, switching power supplies, and PLC controls with detail and clarity.
• Trend Mode: Graph readings over a predetermined time period to check for surges or dropouts.
• Component Test: Check voltage-current signatures on resistors, capacitors, and semiconductors.
• Logic Test: Indicates transitions up to 2 MHz.
• Frequency Counter: Measure low frequency signals from 1Hz to 2 MHz and display duty cycle, pulse width and period.
• PC Compatibility with USB adapter cable and software; Optional accessory A414 allows user to download data or waveforms to PC for archiving, processing, and report generation. Ideal for extended monitoring.

The 440 comes complete with the following accessories:

• 440 Instrument
• Standard Test Lead Set
• Charger/adapter
• Rechargeable batteries
• Instruction Manual

DOWNLOAD DATASHEET
