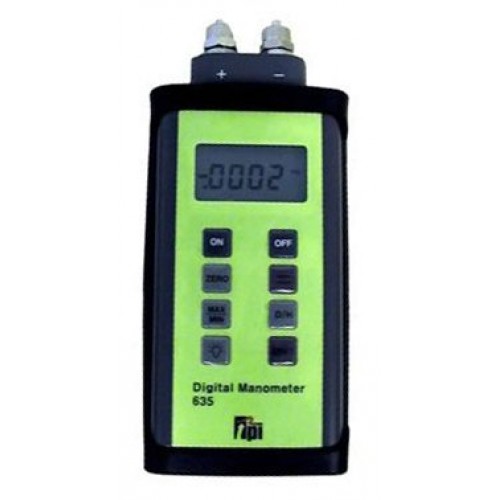

The TPI 600 Tuffman series is a hand held range Of pressure meters and can be summarized as follows:
• TPI 635 5 PSI pressure range
• TPI 645 30 PSI pressure range
• TPI 655 100 PSI pressure range
All of these models are dual input differential pressure meters with 7 selectable scales to choose from: mbar, kPa, PSI, inHg. mmHg,inH20, and mH20.
Standard Accessories (Included): 9V alkaline battery (A009A), replacement tubing (A601).
| Model 635 Specifications | ||
|---|---|---|
| Measurement Range | +/- 5 psi | |
| Display | 4 Digit Dual line LCD with backlight | |
| Input Type | Dual Differential (compression fittings) | |
| Resolution (max) | 0.001 psi | |
| Accuracy | +/-(0.1% Full scale + 3 digits) | |
| Functions | One Touch Zero, Data Hold, Back-light, Unit Selection, Smoothing, Auto power Off,Min / Max Record, Resolution Selection | |
| Units of Measure | 7 Units (mbar, kPa, PSI, mmHg, inHg, mH2O, inH2O) | |
| Battery Type | 9V Alkaline | |
| Battery Life | 80 hours (Typical) | |
| Auto Power Off | 30 minutes | |
