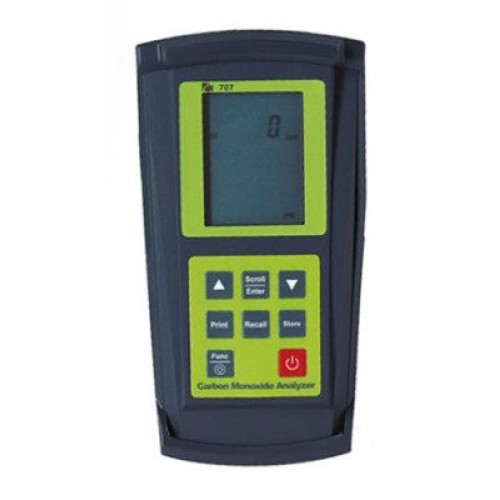

The TPI 707 combustion analyzer uses a state of the art electrochemical sensor. This sensor technology provides the longest lasting, most accurate and reliable means for performing tests. The sensor in your analyzer will need to be replaced periodically and calibration is recommended once every year. The 707 will remind you when calibration is due by flashing “CAL DUE Err” for three seconds at start up if the date of calibration is one year or older.

The following guidelines will help prevent damage to your sensor:

• Always use the mini pump filter when performing tests.
• Always periodically check and replace the mini pump filter as needed.
• Always make sure the in-line filter / water trap is installed properly.
• Always periodically check and replace the in-line filter as needed.
• Always remove water or condensation from the inside of the in-line filter / water trap assembly prior to performing tests.
• Always use the optional oil filter (p/n A773) when performing tests on oil burning equipment.
• Never over saturate your sensors by performing tests on equipment with gas levels beyond the capability of you analyzer.
• Always keep the A794 water trap / filter assembly clean and replace the filter as necessary. Replacement filter part number is A794F.

The TPI 707 Flue Gas Analyzer comes complete with the following standard accessories:

•  TPI 707 Instrument
• Rubber Boot (A765)
• Soft Carrying Case (A787)
• Flue Sampling Probe (A69)
• In-Line Filter assembly installed on Flue probe (A794)
• Mini Pump Protection Filter Assembly and spare filters (A763)
• Exhaust Spigot (removable) (A764)
• Instruction Manual
• ( ) Denotes part number

The TPI 707 Flue Gas Analyzer has the following options available:

• Infrared printer (A740)
• Spare In-Line Filter (A794F is a package of 5 filters)
• Spare Water Block Filter (A794W is a package of 1 filter).
