Accidentally hitting a utility line during a project can lead to costly repairs and create hazardous public safety situations. Digging in the wrong place can also lead to unnecessary delays and costs for your project, and ultimately, your company. Avoid this disruption with the rugged and durable Amprobe UAT-600 Series, designed to accurately pinpoint underground utilities and buried services up to 20 feet deep.

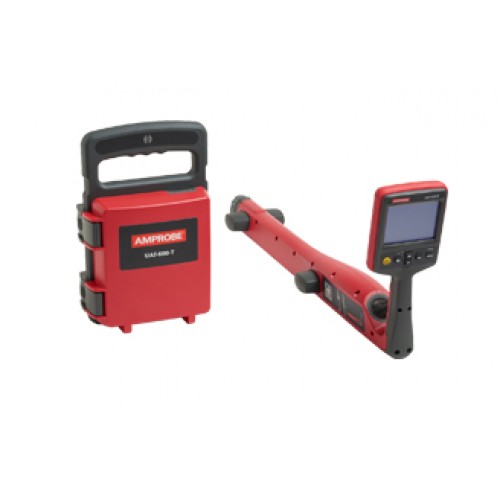

The locating kit comes complete and ready for use with a Transmitter, Receiver, test lead kit, batteries and additional fuses, all in a mobile, protective duffle bag. The UAT-620 kit also includes a Signal Clamp for transmitting a signal when it is not possible to make electrical contact with the cable to be traced. For applications where ground fault locating is required, use the UAT-600 Transmitter in combination with the optional A-Frame accessory.
Main applications
Locate energized 50/60 Hz cables carrying current
Identify the location of all metallic utilities: pipes*, energized and de-energized cables
Trace individual pipes* or cables (energized or de-energized)
*Tracing of non-metallic pipes and conduits is possible after inserting metal fish tape or cable
Three testing modes for wide range of applications
Passive power mode (50/60 Hz) – tracing energized lines conducting current (no Transmitter necessary)
Passive radio mode (RF) – using surrounding radio waves to trace underground utilities (no Transmitter necessary)
Active mode using UAT-600-T Transmitter
Three active modes using the UAT-600-T Transmitter
Induction – the Transmitter will automatically start to radiate a signal around it using an internal antenna, used for tracing individual cables where there is no access to the line to connect test leads or a clamp
Direct connection with test leads – the most reliable method to trace individual cable or a pipe
Clamp (Included in the UAT-620 kit, optional for the UAT-610 kit) – provides an efficient and safe method of applying a locate signal to a cable, where it is not possible/safe to gain access to a cable for making an electrical contact
Special applications
2 frequency options: 8 kHz and 33 kHz
Locate non-metallic pipes and sewer lines
Take depth and current measurements
Measure voltage, resistance and output current
Advanced locating with two people
Locate ground faults with the optional AF-600 A-Frame accessory
Kit Contains
UAT-610 Kit
UAT-620 Kit
UAT-600-R Receiver
●
●
UAT-600-T Transmitter
●
●
CC-UAT-600 Carrying Case
●
●
TL-UAT-600 Test Leads Kit
●
●
FP-UAT-600 Replacement Fuse
●
●
User Manual
●
●
Quick Reference Guide
●
●
6 x 1.5 V AA (IEC LR6) Batteries (Receiver, not installed)
●
●
8 x D-Cell Batteries (Transmitter, not installed)
●
●
CT-400 Signal Clamp
-
●
Features
UAT-600-R Receiver
UAT-600-T Transmitter
SC-600 Signal Clamp (included with UAT-620, optional for UAT-610)
Measurement category
CAT IV 600 V
Operating voltage/current
0 to 600 V
0 to 600 V, 100 A max.
Operating frequency/tracing modes
Active tracing: 33 kHz and 8 kHz Passive tracing: 50/60 Hz and Radio
Energized circuit Induction mode: 33 kHz Direct connection modes: 8 kHz and 33 kHz Clamp mode: 8 kHz and 33 kHz De-Energized circuit Induction mode: 33 kHz Direct connection modes: 8 kHz, 33 kHz, A-Lo/A-Hi A-Frame: 8 kHz Clamp mode: 8 kHz and 33 kHz
33 kHz and 8 kHz
Locating modes
-
Peak and Null
-
Depth measurement and accuracy
Up to 20 ft 4 in to 10 ft: ± 3 % 10 ft to 20 ft: ± 5 %
-
-
Display backlight
Automatic
Yes
-
Audio indication
Increasing closer to the signal
Fast beeps showing the better signal is applied
-
Transmitting mode power output
-
Max. 3 watts
-
Output voltage
-
Max. 50 V rms
-
Output current
-
Max. 250 mA rms, constant current in 5 steps
-
Signal voltage output (nominal)
-
-
23 V rms at 8 kHz 30 V rms at 33 kHz
Mains voltage measurement
-
0 V to 600 V, 50 Hz to 60 Hz Resolution: 1 V Accuracy: ± 10%
-
Resistance measurement (De-energized circuit)
-
0 Ω to 999 kΩ Range: 0 Ω to 999 Ω (resolution: 5 Ω) Range: 1 kΩ to 999 kΩ (resolution: 1 kΩ) Accuracy: ± 10%
-
Output hazardous voltage warning
-
≥ 30 V rms
-
Mains hazardous voltage warning
-
≥ 30 V rms
-
Sensitivity adjustment (gain control)
Yes
-
-
Sensitivity at 1 m (typical)
Power: 2 mA Radio: 20 μA 8 kHz: 5 μA 33 kHz: 5 μA
-
-
Display
4.3 in, 320 x 240 BW outdoor LCD display with auto backlight
LCD display (LED backlight) 2.4 in x 1.3 in
-
Update rate
Instantaneous
Current (mA): 10 ms Voltage (V): 15 ms Resistance (Ω): 330 ms
-
Operating temperature and humidity
-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity
-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude
< 6561 ft (< 2000 m)
Pollution degree
2
Water and dust resistance
IP54
Drop proof
3.28 ft (1 m)
Power supply
(6) 1.5 V AA alkaline batteries
(8) 1.5 V D cell alkaline batteries
-
Auto power off
15 minutes idle
-
-
Battery life
Approx. 35 hours at 70 °F (21 °C) (Typical)
Approx. 16 hours at 70 °F (21 °C) (Typical)
-
Overload protection
-
600 V rms Fuse FF 500 mA, 1000 V, IR 30 kA, Φ6.3×32 mm
For complete specs please download the product datasheet under the "Resources" tab.
Model Name
Description
Price List
Buy it
AMP UAT-610
Amprobe UAT-610 Underground Utilities Locator Kit
Multiple tracing modes allow you to locate and trace energized and de-energized utilities in a variety of applications
The intuitive Transmitter automatically chooses the correct locating function based on the connected accessory and includes selectable 8/33 kHz frequencies
The Receiver's high-contrast display allows for clear viewing in full sunlight and features an automatic backlight for shaded and dark areas
Semi-automatic gain control quickly detects tracing signal and allows precise adjustment of the receiver sensitivity
Depth measurement up to 20 ft
Rated CAT IV 600 V, ensuring safety when working with energized cables
Rugged, durable construction: water and dust resistant to IP54 and drop proof to 3.28 ft (1 m)
Use the Signal Clamp to induce a signal without making electrical contact (included with the UAT-620)
Ground fault locating with the optional A-Frame accessory
Included Accessories: UAT-600-R Receiver, UAT-600-T Transmitter, CC-UAT-600 Carrying Case, TL-UAT-600 Test Leads Kit (black test lead with detachable black alligator clip, red test lead with permanently attached red alligator clip, ground stake), 2 x FP-UAT-600 Replacement Fuses, 6 x AA Batteries, 8 x D Batteries, User Manual, Quick Reference Guide
Description: Amprobe TL-UAT-600 Test Lead and Accessory Kit for the UAT-600 Series Underground Utilities Locator Kits. Includes black test lead with detachable black alligator clip, red test lead with permanently attached red alligator clip and a ground stake.
Description: The SC-600 Signal Clamp accessory provides an efficient and safe method of applying a locate signal to a cable, enabling the UAT-600 Transmitter to induce a signal through the insulation into the wires or pipes.
