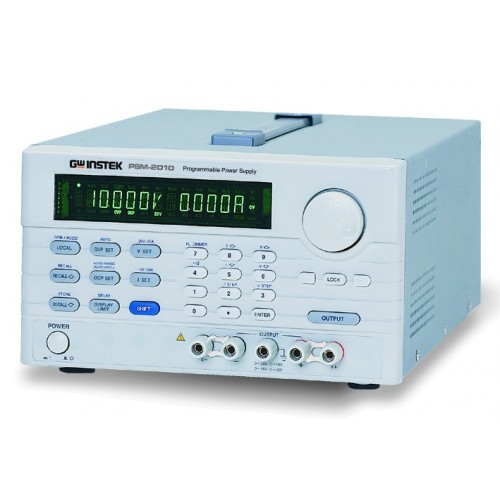

The PSM-Series are single output / dual range, 120 or 200W, programmable linear DC power supplies. OVP, OCP, OTP, and, output On/Off control protect the PSM-Series and their load from unexpected conditions. High resolution, high regulation, and low ripple are maintained at 1mV/1mA, 0.01%, and <350 Vrms, respectively. Operation and configuration is simplified with a digital interface and a clear LCD display. Standard features include store/recall output memories, automatic stepping with timers for continuous testing and self-testing, and software calibration features to reduce maintenance efforts. SCPI programming, LabVIEW drivers, RS-232C, and GPIB interfaces enable easy automated test system integration and remote control. The PSM-Series are an ideal choice for high precision applications such as QA verification and product development.
Features
- Single Output Dual Range Max. 200W
- High resolution: 1mV/1mA
- 0.01% load/line regulation, 350uVrms ripple
- Auto step runing with timer setting and 100 Sets memory
- Safety design: OVP,OCP & OTP;Output ON/OFF control
- Self-test and software calibration
- Highly visible vacuum-fluorescent display
- Front and rear output terminal
- Standard interface : RS-232C, GPIB
- Option : European Jack Type Terminal
- Download Datasheet
GW INSTEK PSM-Series (Linear)
- Brand: GW INSTEK
- Product Code: PSM-Series (Linear)
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
