Product Parameters

• Display: 4 digit LED display, -1999 to +9999
• Power Supply: 6V drop for 4-20 mA loop signal, 8-36Vdc for 0-10V signal
• Electrical Connection: DIN, Binder or M12 connector
• Configuration: Front keypad buttons
• Dimensions: 47 x 47 x 68 mm (housing only)
• Special Features: 330 deg rotatable display and 300 deg rotation on connector, mix and match connectors
• Special Options: Intrinsically safe approval, PNP open collector contacts

Product Description

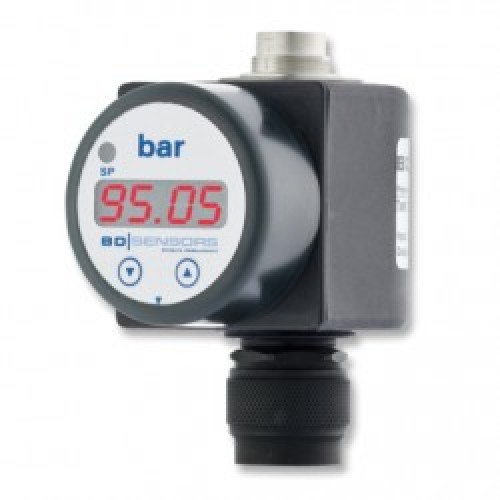

The PA 430 is fully compatible with the DMP and DMK series of pressure transmitters and LMP/LMK series of liquid level transmitters with a DIN, M12 or Binder electrical connector. If necessary the PA-430 can be used to adapt one type of connector to another type since top and bottom connectors are independently specified.

This versatile add on local indicator can be easily retrofitted to an existing pressure transmitter by simply unplugging the transmitter and installing the PA430 between the existing plug and socket.

No extra power supply is required since the PA430 is powered by the sensor supply. The main consideration is to ensure there is sufficient supply to both the transmitter and the plug-on display.

The PA430 allows the user to switch electrical connection for input and output by mixing Binder, M12 electrical and DIN  plug and socket connector types.

Options include ATEX IS approval for hazardous areas and 1 or 2 contact PNP switches for on/off process control function.

The readout can be pointed in any direction so that it can be installed without the need to re-position the transmitter.
