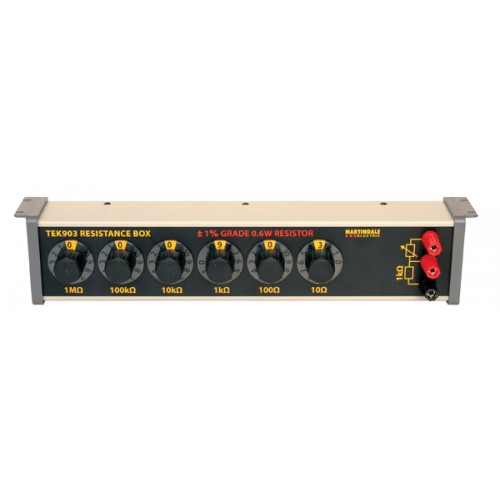

The Martindale TEK903 decade resistance box, features 6 decades ranging from 10Ω to 11.1111MΩ, and high quality rotary switches. Extra terminals also form an accurate potential divider.

With a 1% accuracy, this is ideal for laboratory, education and calibration applications.

Resistance:

• 1% grade 0.6W per resistor variable from 10Ω to 11.1111MΩ in 6 decades

Typical residual (zero) resistance:

• < 150mΩ

Temperature coefficient:

• 50 ppm/°C

Operating environment:

• 0°C to 50°C at < 70% RH

Dimensions:

• 345 x 71 x 51 mm

Weight:

• 536g approx

Download Datasheet
