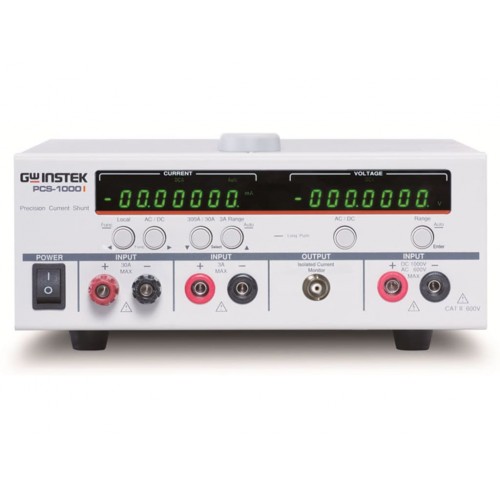

• GW Instek PCS-1000I High Precision Current Shunt Meter
Features

  • 6 1/2 digit voltage and current measurement resolution
  • Simultaneous current and voltage measurement
  • Five current measurement levels (AC&DC): 30mA/ 300mA/ 3A/ 30A/ 300A
  • AC voltage measurement levels: 200mV/ 2V/ 20V/ 200V/ 600V
  • DC voltage measurement levels: 200mV/ 2V/ 20V/ 200V/ 1000V
  • Standard: USB& GPIB
  • CE verification

PCS-1000I Specifications

The specifications apply when the PCS-1000I is powered on for at least 30 minutes under +20°C~+30°C.



Write a review

Note: HTML is not translated!
    Bad           Good

GW Instek PCS-1000I High Precision Current Shunt Meter

Minta Penawaran

Tags: GW, INSTEK, PCS, 1000I

PCS-1000I Specifications

General

Power Supply

100 V / 120 V / 220 V / 240 V ±10%

Power Line Frequency

50/60 Hz

Operating Environment

Full accuracy for0 ℃to55 ℃, Full accuracy to 80% R.H. at40 ℃

Storage Environment

-40 ℃to70 ℃

Power Consumption

Max 35VA

Dimensions

210 mm(W) *80 mm(H) *390mm(D)

Weight

Approxiately5 kg

DC Characteristics

DC Voltage

Range

 1 Year23 ℃±5 ℃

Temperature
Coefficient/
℃

200.0000 mV



0.0050 + 0.0035

0.0005 + 0.0005

2.000000 V



0.0050 + 0.0010

0.0005 + 0.0001

20.00000 V



0.0050 + 0.0010

0.0005 + 0.0001

200.0000 V



0.0050 + 0.0010

0.0005 + 0.0001

1000.000 V



0.0050 + 0.0020

0.0005 + 0.0001

Accuracy specification : ± (% of reading + % of range)

Voltage input Resistance:10MΩ for all DC Voltage ranges



DC Current

Range

Burden Voltage

 1 Year23 ℃±5 ℃

Temperature
Coefficient/
℃

30.00000 mA

<0.4 V

0.01 + 0.005

0.001 + 0.002

300.0000 mA

<0.5 V

0.01 + 0.005

0.001 + 0.002

3.000000 A

<0.8 V

0.01 + 0.005

0.001 + 0.002

30.00000 A*1

<0.8 V

0.01 + 0.005

0.001 + 0.002

300.0000 A*1

<0.8 V

0.02 + 0.005

0.001 + 0.002

Accuracy specification : ± (% of reading + % of range)



Isolated DC Current Monitor Accuracy

Range

Resolution( 6 1/2)

DC Accuracy

Temperature
Coefficient/
℃

30.00000 mA

0.00001mA

0.1+0.05

0.001

300.0000 mA

0.0001mA

0.1+0.05

0.001

3.000000 A

0.000001A

0.1+0.05

0.001

30.00000 A*1

0.00001A

0.1+0.05

0.001

300.0000 A*1

0.0001A

0.2+0.05

0.001

Accuracy specification : ± (% of output + % of full scale)

Monitor output voltage for the full scale current = 3V



AC Characteristics



True RMS AC Voltage
