PPW series is a high accuracy programmable DC power supply with single output. MPU control, RS232/RS485/USB interface for PC control, the PPW series facilitates auto test and auto control. The commands of the PPW series are compliant with SCPI commands. Users can easily develop programs to facilitate different applications in auto test and auto control. Digital input fulfilled by rotary dial and keypad input, fast and accurate. Voltage and current regulations by software, avoids human error and makes the PPW series more accurate
· High accuracy, high resolution
· Over load, over voltage, over current, over temperature and reverse polarity protections
· CV and CC operations, auto CV and CC switch
· 4.3-inch backlit LCD display
· High speed rotary dial and keypad input
· Built-in beeper alarm
· Panel lock and output ON/OFF function
· List mode function, 100 sets save & recall for voltage, current and time setups, easy use in auto test
· Remote sense function
· Low resistance measurement function, display load resistance value
· Battery charge function
· Standard RS232 interface, support SCPI commands, support Labview
· Optional RS485 interface, support Modbus
· Optional RS232-to-USB cable
· Optional 0-5V analog control
Model | PPW-1560 | PPW-2045 | PPW-3030 | PPW-6015 | PPW-8011 |
Rated output (0℃~40℃) | |||||
Voltage | 0~15V | 0~20V | 0~30V | 0~60V | 0~80V |
Current | 0~60A | 0~45A | 0~30A | 0~15A | 0~11A |
OVP | 0.1~18V | 0.1~23V | 0.1~34V | 0.1~64V | 0.1~88V |
OCP | 0.1~62A | 0.1~50A | 0.1~34A | 0.1~17A | 0.1~12A |
Constant Voltage Operation | |||||
Line regulation | ≤0.01%+4mV | ||||
Load regulation | ≤0.1%+5mV | ||||
Ripple & Noise | 2mVrms, 30mVpp(20Hz~20MHz) | ||||
Recovery time | ≤1.5ms (50% load change) | ||||
Temperature coefficient | ≤300ppm/℃ | ||||
Setting accuracy | ±(0.03% of reading + 10mV) (25±5℃) | ||||
Setting resolution | 1mV | ||||
Constant Current Operation | |||||
Line regulation | ≤0.2%+3mA | ||||
Load regulation | ≤0.2%+5mA | ||||
Ripple & Noise | ≤10mArms | ||||
Setting accuracy |

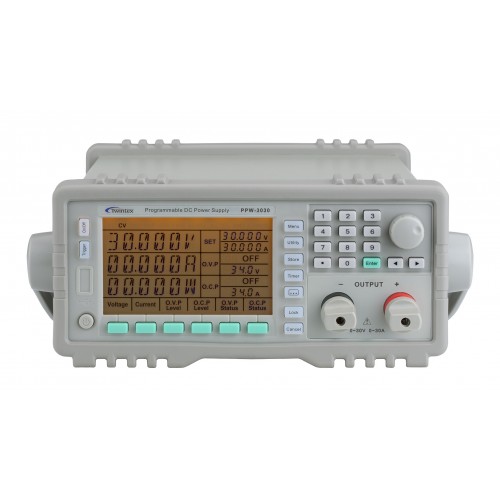

Twintex PPW Series 900W Programmable Switching DC Power Supply
