WI560A-120 - Short circuiting and grounding equipment for HV overhead lines up to 500 kV
Description

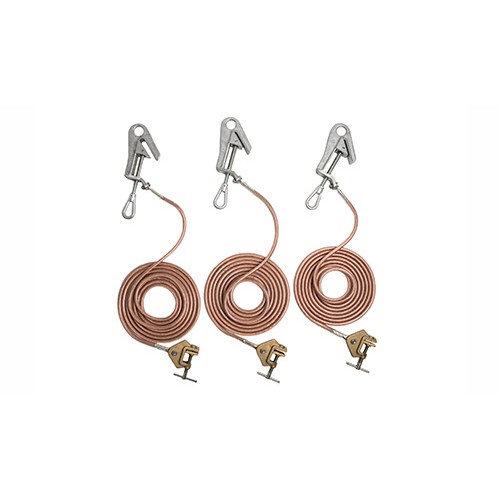

Composition of the equipment:
- 3 light alloy contact clamps type PC560/A. Suitable for oxidized conductors too. Lower ring for fastening and unfastening.
- Clamping capacity: round conductors Ø 5÷60 mm.
- 3 Extraflexible electrolytic copper cables covered by transparent plastic sheath, section 120 mm2, length 6 m (different lengths on demand).
- 3 Press forged brass ground clamps type MT33. Clamping capacity: round conductors and bars up to 33 mm.
- High insulating rod made of vinylester resin tube reinforced by fiberglass and filled by closed cells polyurethane foam, certified in conformity with IEC 60855-1. Type PVR2/400G, total length 4 m in two elements with quick couplers and top hook for maneuvering the clamps.
- Metallic case type 5025.00 for the equipment.
- Heavy fabric bag for the insulating rod
|
Alternative versions |
|||
|
WI560A-50 |
Cables section 50 mm² |
CEI EN 61230 |
ICC 12.7 kA / 1 s |
|
WI560A-70 |
Cables section 70 mm² |
CEI EN 61230 |
ICC 15.1 kA / 1 s |
|
WI560A-95 |
Cables section 95 mm² |
CEI EN 61230 |
ICC 25 kA / 1 s |
WORK ITALIA WI560A-120 - Short circuiting and grounding equipment for HV overhead lines up to 500 kV
- Product Code: WI560A-120
