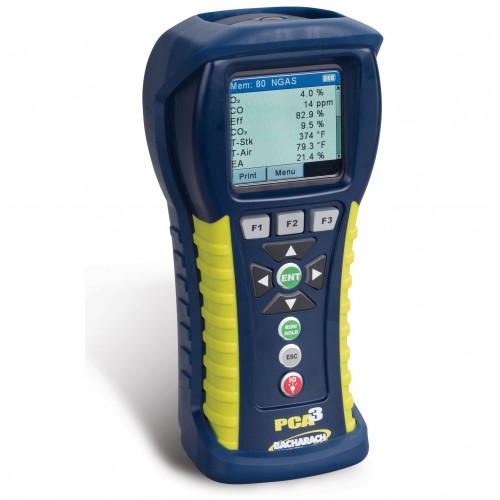

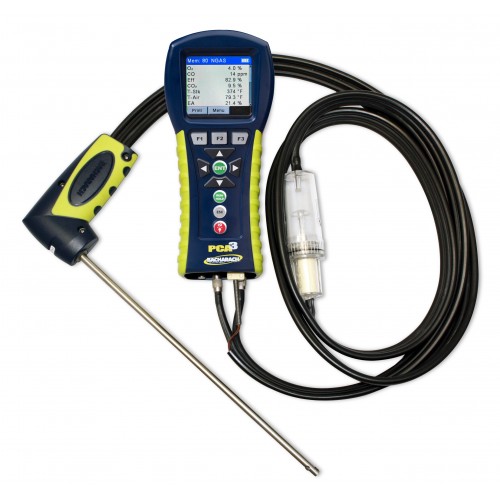

The PCA®3 is the perfect tool for busy technicians and boiler contractors who need to ensure safe operating conditions, determine combustion efficiency and perform emissions testing.  Up to 4 sensors can be installed, measuring all gases simultaneously, including NOx (calculated from NO or measured from NO + NO2).   Sensors can be added in the field without down time or replaced using B-Smart® pre-calibrated sensors. The PCA®3 calculates values like efficiency, CO2 and CO air-free to help monitor combustion processes effectively and accurately.

The PCA®3 is designed for on-demand or semi-continuous sampling of light industrial, institutional, commercial and residential furnaces, boilers and appliances. It complies with regulations such as U.S. EPA test methods, EN 50379, CTM-030 and state/local protocols including SCAQMD.  With sturdy metal gas and draft connectors, rugged construction, simple operation and quick, cost-effective maintenance, the PCA®3 is the workhorse of the industry.

Bacharach PCA 3 adalah alat ukur kadar gas buang untuk uji emisi maupun pengukuran efisiensi boiler. Sensor yang terpasang dapat mencap[ai 4 buah sensor yaitu O2, CO, NO, dan SO. Spesifikasi detail sbb:

Measurements:

  O2

  CO (low-range, H2-compensated)

  CO (high-range, optional)

  NO (optional)

  NO2 (optional)

  SO2 (optional)

  Stack temperature

  Primary/ambient air temperature

  Draft/differential pressure



0 to 20.9%

0 to 4000 ppm

4001 to 20,000 ppm

0 to 3000 ppm

0 to 500 ppm

0 to 5000 ppm

-4 to 2192 °F (-20 to 1200 °C)

-4 to 999 °F (-20 to 537 °C)

± 72 inH2O (± 179 mbar)
