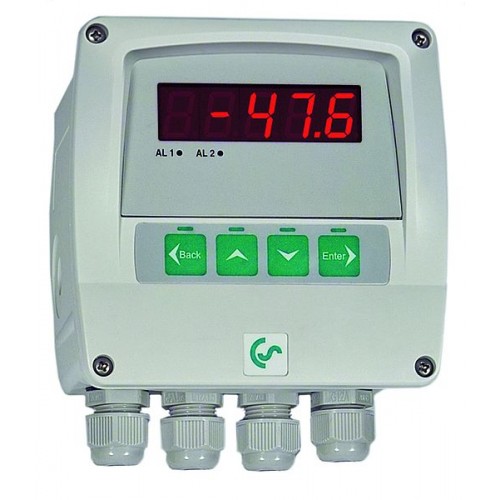

DS 52 - Digital process meter
In wall housing for 0(4)...20 mA signals. With the digital process meter DS 52 in a shapely wall housing the annoying search and the mounting into a suitable plastic housing is no longer necessary. DS 52 disposes of 2 potential-free alarm contacts (switch-over contacts) which can be charged with maximum 230 VAC, 3 A. The alarm limits can be adjusted via the keys.
The display is supplied with 230 VAC and disposes of an internal mains unit which provides a voltage of 24 VDC/100 mA for the sensor. Free screwing clamps are available for forwarding the (0) 4...20 mA signal to superordinated systems.
Special features of digital process meter DS 52
- Integrated in a shapely wall housing
- Suitable for all customary sensors with 0(4)...20 mA signal
- Easy operation
- 2 relay outputs (230 VAC, 3 A)
CS INSTRUMENT DS 52 - Digital process meter
- Product Code: DS 52
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
