UL /CE CAT III 600V
Features:

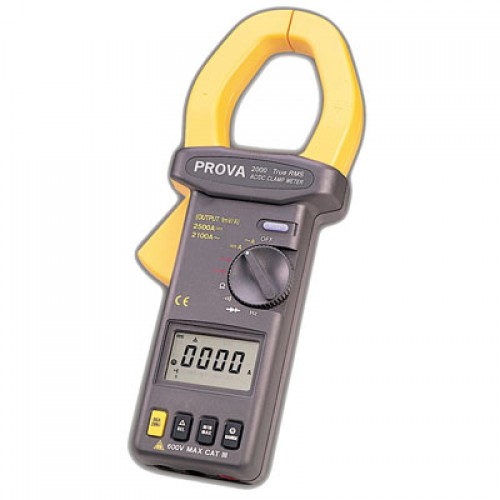

■ Accurate DC/AC digital clamp meter for current measurement
■ DC 2500A, AC 2100A
(Average sensing for PROVA 2003, True RMS for PROVA 2000)
■ DC/AC 600V
■ Analog output for datalogger or oscilloscope
■ 55 mm diameter jaw
■ One touch zero for DCA adjustment
■Auto-range for A, V, , Hz
■ Large 3 3/4 digits LCD
■ Fast bargraph display (30 times/sec.) for transient observation
■ Frequency, Resistance measurement
■ Continuity with buzzer
■ Diode Test
■ Max/Min and Data Hold functions
■ Auto-power-off function
■ 600V overload protection for ohm measurement
■ Easy single rotary switch for any function selection
Electrical Specifications: (23℃±5℃)
DC Current:
Range | Resolution | Accuracy (of rdg) | Overload Protection |
400A | 0.1A | ±1.5%±3dgts |
DC 3000A
|
0-2000A | 1A | ±1.5%±3dgts | |
2000-2500A | 1A | ±2.0%±3dgts |
AC Current:
(Average Sensing for PROVA 2003, True RMS for PROVA 2000, Crest Factor < 4)
Range | Resolution | Accuracy (of rdg) | Overload Protection | |
50/60 Hz | 40 – 1KHz | |||
400A | 0.1A | ±1.5%±5dgts | ±2.0%±5dgts |
AC 3000A
|
0-1000A | 1A | ±2.0%±5dgts | ±2.5%±5dgts | |
1000-2100A | 1A | ±2.5%±5dgts | ±3.0%±5dgts | |
Current Analog Output:
Range | Output | Accuracy | Overload Protection |
0 - 400A | 1mV/A | ±2.5% ±0.5A | 600V AC |
400 - 2100A |
