Residual OILCHECK according to ISO 8573 - mobile solution

The residual oil content sensor OIL check measures the vaporous residual oil content in the compressed air. By means of a sample taking a representative part volume flow is taken from the compressed air and led to the OIL check. Due to the continuous measurement threshold value exceeding will be recognized immediately and remedial actions initiated.

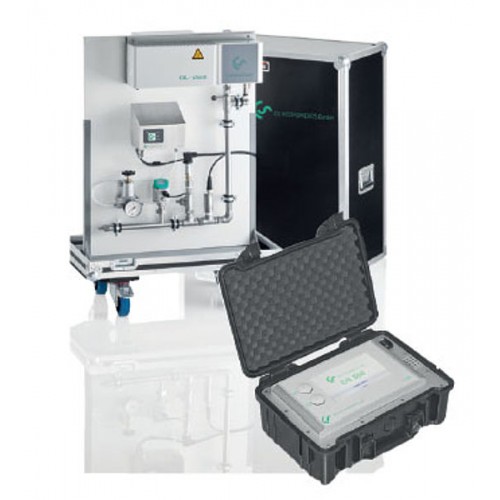

Mobile solution in combination with PC 400 particle counter + DS 500 mobile

• OIL-Check residual oil content measurement for vaporous residual oil content (DN 20 - DN 40), 3-16 bar, measuring range < 0.01...5.000 mg/m³, including sampling probe (DN 20 - DN 40), inspection certificate, 4...20 mA analogue output
• OIL-Check measuring section for sampling (DN 20, 3/4", 16 bar, stainless steel, outer diameter 26.9 mm, outer thread R 3/4") please find further measuring sections at data sheet
• Ball valve G 3/8" incl. connection fittings for installation between sampling probe and OIL-Check, cleaned oil- and grease-free
• Connection plug for 4...20 mA analogue output
• Connection cable for third-party sensors to portable devices, ODU/open ends, 5 m
• PC 400 particle counter up to 0.1 µm for compressed air and gases, incl. pressure reducer
• Connection cable 5 m
• DS 500 mobile - intelligent chart recorder in basic version (4 sensor inputs)
• CS Soft Basic - data evaluation in graphic and table form - reading out of the measured data via USB or Ethernet
• Mobile transport case with wheels including mounting plate

Download Datasheet
