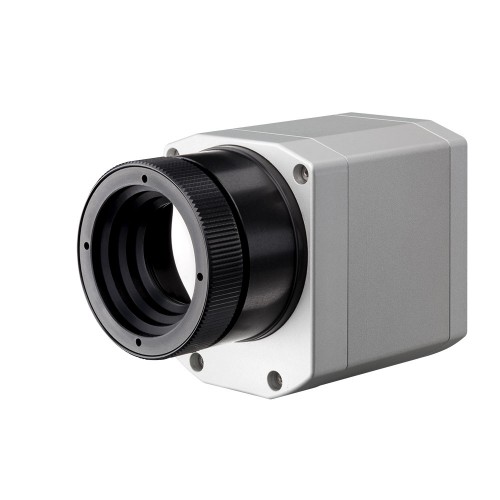

Infrared camera optris PI 400 / PI 450

The infrared cameras optris PI 400 / PI 450 are the smallest thermographic cameras in their class. Being equipped with a measurement speed of 80 Hz and an optical resolution of 382 x 288 pixels they provide real-time thermographic images in high speed.

The IR camera PI 450 is, due to its thermal sensitivity of 40 mK, specifically suited for detection of slightest temperature differences, making it indispensable in quality control of products and in medical prevention.

The compact and high-performance infrared cameras offer a temperature range of -20°C up to 900°C, being optionally upgradeable up to 1500 °C. They can be delivered with exchangeable optics, industrial thermal imager equipment and they come with an extensive license-free thermography software package.

Important Specifications

• Temperature range:
  -20 °C to 900 °C
  (optional up to 1500 °C)

• Spectral range: 7.5 to 13 µm
• Frame rate: 80 Hz
•

• download datasheet
