Martindale Part No: MARTEK905

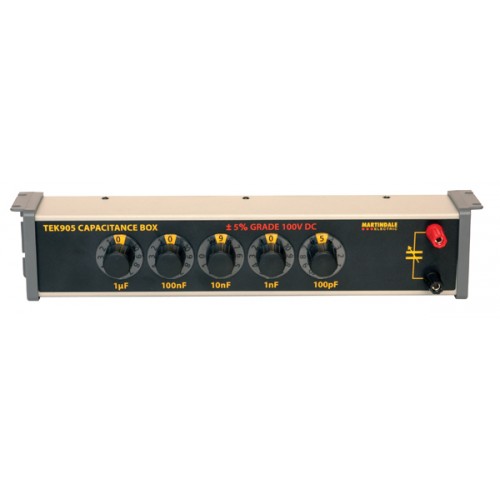

The Martindale TEK905 is a reliable, 5 decade capacitance box, ideal for laboratory, educational and calibration applications.
Capacitance values range from 100pF to 4.111µF, with a 5% accuracy.
Capacitance:
- ±5% grade 100 V DC variable from 100pF to 4.111µF in 5 decades
Typical residual (zero) resistance:
- < 40pF
Operating environment:
- 0°C to 50°C at < 70% RH
Dimensions:
- 345 x 71 x 51 mm
Weight:
- 489g approx
