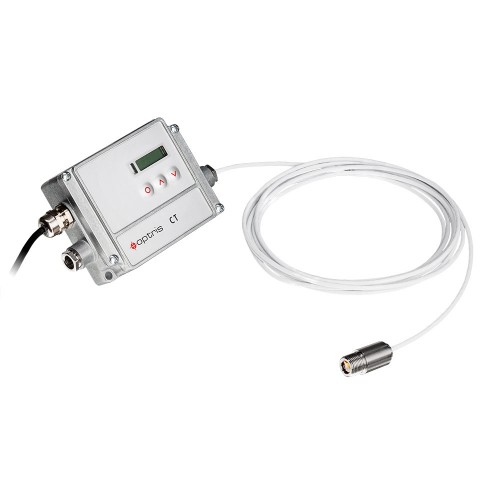

Pyrometer optris CT 1M / 2M for high-temperature measurements of metal

Due to their short measuring wavelength and the high temperature range of up to 2,200°C the pyrometers optris CT 1M and 2M are ideally suited for employment in high-temperature measurements of metals, metal oxides, and ceramics. The short measuring wavelength of the infrared pyrometers additionally decreases measuring errors during low or changing emission levels.

The small sensor head allows for easy installation in limited and cramped spaces. Moreover, it reliably measures temperatures even in ambient temperatures of up to 125°C.

Important specifications

• Temperature range:
  485°C to 2,200°C (1M)
  250°C to 2,000°C (2M)
• Spectral range: 1.0 µm (1M), 1.6 µm (2M)
• Response time: 1 ms
• Price starts from 492.00 USD (plus VAT)
•

• download datasheet
