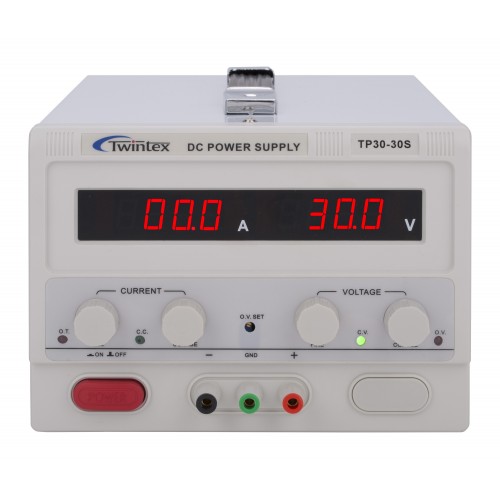

The TP-S series are high power output DC power supply with output range up to 5kW. The TP-S series can be made according to customer request, with output voltage up to 600V and output current up to 150A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and Over Power Protection keep the TP-S series and their load safe from unexpected conditions. High Accuracy, high stability and low ripple & noise make the TP-S series an ideal solution for various industrial applications.

·         Max.output power ranging from 150W to 5kW

·         Max.output voltage 600V, Max. output current 150A

·         Applying advanced PWM control technology

·         Compact design and light weight (3~10kg)

·         Constant voltage (CV) and constant current (CC) operations

·         Auto CV/CC switch

·         Coarse and Fine control for voltage and current

·         Over voltage, over current, over temperature and over power protections

·         Adjustable OVP & OCP range, OPP fixed 110% of Max. power

·         Intelligent temperature control cooling fan

·         Customized specifications and functions acceptable

Download Datasheet
