Unique mapping function let you calibrate temperature (300 °C) or voltage (220V) directly.

iCal is a multifunction calibrator and an arbitrary function generator.

Source: mA (4 to 20mA), V (0 to 15V, 0 to 70mV), Hz, sine wave, square wave, triangular wave, truncated sine wave, user programmable waveform and temperature for 11 types of thermocouples.

Measure: current (mA), voltage (V, mV) and temperature (℃ or °F).

Programmable cold junction compensation allows users to fine tune temperature output and measurement.

Programmable 0% and 100% value for easy 25% step function.

Output error warning when output is shorted or open.

Short circuit protection for voltage output.

Clear and easy user interface (numerical key pad, sliding switch and dot matrix LCM with backlight).

Voltage, frequency, PWM duty-cycle (square wave and triangular wave), and offset are programmable in the Hz function.

Frequency range (0.3Hz to 20KHz) covers application of audio band (speaker, MP3, MD etc.)

DTMF (Dual Tone Multi-Frequency) can perform professional testing for telephone line and audio product (MP3 or MD).

Auto-step and auto-ramp functions can quickly perform linear test.

PC can program calibrator through USB port.

Data logging with programmable sampling time (0~255 sec.) and memory of 4000 records.

Rechargeable lithium battery (1600mAH) with built-in charging circuit.

Calibration results (source & measure) can be saved in memory (2000 records). Then users download them to a PC for documentation.

To distinguish calibration data at different locations, data can be saved under different file names.

Electrical Specifications:
(23+/- 5℃, 10 minutes after turning on the power)

mA (source) (Vopen > 15V)

Range	Resolution	Accuracy of Reading
-4mA to -0.005mA	1uA	+/-0.03% +/- 5dgts
0.005mA to 4mA	1uA	+/-0.03% +/- 5dgts
4mA to 20mA	1uA	+/-0.03% +/-3dgts
20mA to 24mA	1uA	+/-0.03% +/-5dgts

V (source) (maximum load 1mA, short circuit protection < 100mA)

Range	Resolution	Accuracy of Reading
-3V to -0.005V	0.001V	+/-0.03% +/-5dgts
0.005V to 10V	0.001V	+/-0.03% +/-5dgts
10V to 15V	0.001V	+/-0.03% +/-5dgts

mA (measure)

Range	Resolution	Accuracy of Reading
-4mA to -0.005mA	1uA	+/-0.03% +/- 5dgts
0.005mA to 4mA	1uA	+/-0.03% +/- 5dgts
4mA to 20mA	1uA	+/-0.03% +/-3dgts
20mA to 24mA	1uA	+/-0.03% +/-5dgts

If reading of mA (measure) is less than 5 digits, it is displayed as 0.

V (measure)

Range	Resolution	Accuracy of Reading
-3V to -0.005V	0.001V	+/-0.03% +/-5dgts
0.005V to 10V	0.001V	+/-0.03% +/-5dgts
10V to 24V	0.001V	+/-0.03% +/-5dgts

If reading of V (measure) is less than 5 digits, it is displayed as 0.

Frequency (source, 10 Vpp, 0V offset, square wave, duty cycle = 50%)

Range (Hz)

Input Resolution

Accuracy

0.3 to 99.999

0.1Hz

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

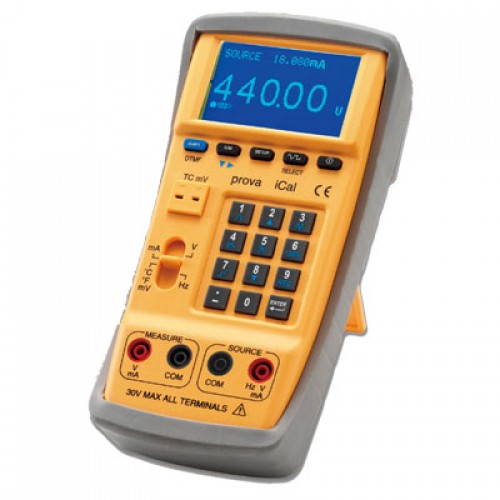

PROVA iCal Documenting Multifunction Calibrator
