Accurate AC digital clamp meter for leakage current measurement

AC current measurement: 0 ~ 60A

AC voltage measurement: 0 ~ 400V

10μA ultra high resolution on 40mA range

Shield transformer jaws to minimize the effect of external stray magnetic field.

Large jaw with 30 mm diameter.

ACA Five Ranges (40mA, 400mA, 4A, 40A, 60A) for all application.

A filter circuit is designed to eliminate the effect of high frequency noise and harmonics
for AC current measurement.

Large 3 3/4 digits LCD

Fast bargraph display (30 times/sec.) for transient observation.

Continuity and Frequency measurements.

Max/Min, Data Hold functions, and Relative Measurement

Easy single rotary switch for any function selection

600V overload protection for ohm measurement

Electrical Specifications: (23℃±5℃)

AC Current:

Range	Resolution	Accuracy		Remarks
Range	Resolution	50/60 Hz	Wide (40 - 1KHz)	Remarks
40mA	10μA	±1.0%±3dgts	±2.0%±5dgts
400mA	100μA	±1.0%±3dgts	±2.0%±5dgts
4A	1mA	±1.0%±3dgts	±2.0%±5dgts
40A	10mA	±1.0%±3dgts	±2.0%±5dgts
60A (0-50A)	100mA	±1.5%±3dgts	±3.0%±5dgts
60A (50 - 60A)1	100mA	±3.0%±5dgts	±3.5%±5dgts

1 Though the meter can display up to 400A, it is not calibrated beyond 60A.

AC Voltage:

(Input Impedance: 10MΩ)

Range	Resolution	Accuracy		Overload Protection
		50/60 Hz	40 - 1KHz
400V	0.1V	±1.5%±2dgts	±2.0%±4dgts	AC 800V

Resistance (Ω) and Continuity:

(open voltage 0.4V)

Range	Resolution	Accuracy	Beeping	OL Protection
40-400 Ω	0.1 Ω	±1.0%±2dgts	< 38.0 Ω	AC 600V

General Specifications:

Conductor Size:

30mm max. (approx.)

Battery Type:

two 1.5V SUM-3

Display:

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

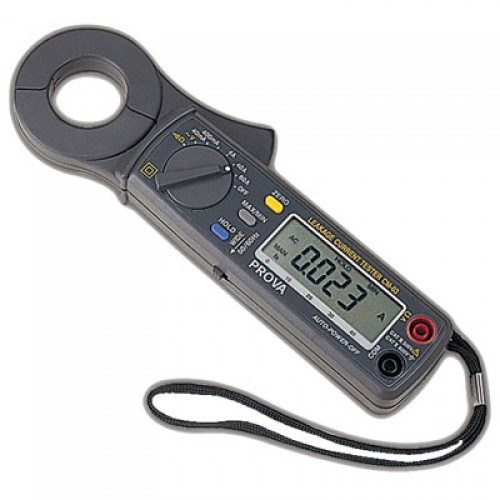

CM-03 Leakage Current Tester
