Product Parameters

• Pressure Ranges: from 0-6mbar up to 0-1000 mbar differential including bi-directional
• Static Line Pressures: from 100 mbar up to 3000 mbar including on one port only
• Accuracy: 0.35%FS >160mbar, 1% <=160mbar, 2%Fs <=20mbar (IEC60770)
• Output Signal: 4-20mA, 0-20mA or 0-10V
• Electrical Connections: DIN43650A plug, IP67 cable gland or M12 connector
• Pressure Connnection: G1/8 female, 6.6mm dia pipe for 6mm dia flexible tubing
• Special Features: Bi-directional pressure ranges
• Media Compatibility: Non-aggressive gases and compressed air
• Dimensions: 40 x 40 x 45 mm excluding connectors
• Weight: ~250g

Product Description

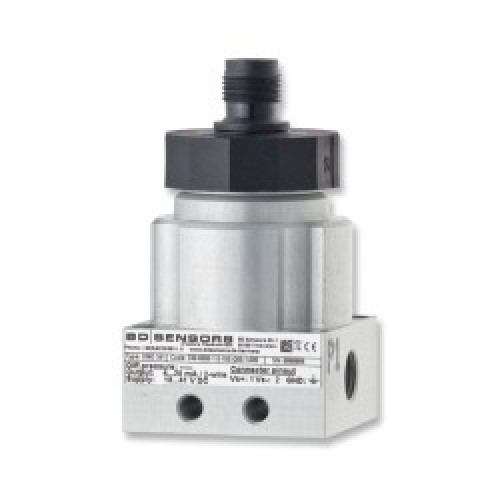

The DMD 341 is a very small compressed air differential pressure sensor suited to installations inside compact systems requiring many sensors for monitoring the switching and delivery of compressed air to plant machinery. The DM341 can also be used to monitor high air flow rates in heating and air conditioning systems.

The DMD341 is used to measure pressures in the range of 0-6 mbar up to 0-1000 mbar differential.

Output signals of 4-20mA, 0-20mA or 0-10Vdc can be chosen for the DMD341 to suit the signal conditioning of most air handling management systems.

The low cost Aluminium construction and incorporation of, for air only sensor components, makes the DMD-341 an economical choice for large quantity applications.

For applications requiring the measurement of air pressure in both directions the DMD341 can be supplied with either 12mA +/-8mA, 10mA +/-10mA or 5Vdc +/-5Vdc signal out.
