Product Parameters

• Pressure Range: from -1 to 3 bar up to 1000 bar gauge or absolute
• Accuracy: +/-0.2% full scale over 0 to 50 Deg C
• Display: 4 1/2 digit LCD
• Output Signal: 4-20mA, 2 wire and RS485
• Supply Voltage: 8-28 Vdc
• Dimensions: 76mm x 125mm x 50mm
• Weight: approx 210g
• Environmental Protection: IP65
• Pressure Connection: G1/4 male
• Special Features: settable current loop output, RS485 digital interface, selectable pressure units
• Special Options: Connect to a PC via Bluetooth, RS232 or USB

Product Description

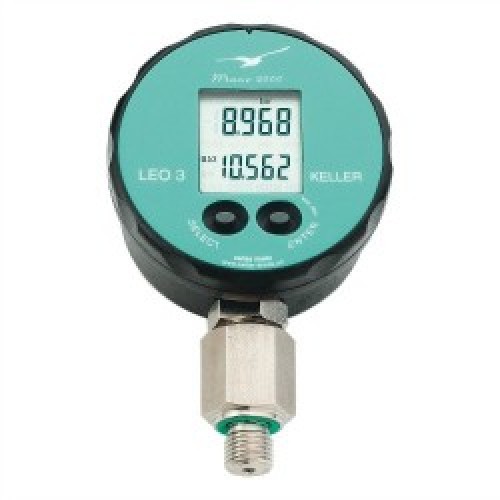

The LEO3 can be used a pressure transmitter or a digital output pressure sensor with a local readout display. Accurate to 0.2% FS the LEO3 is available in a selection of pressure ranges from -1 to 3 bar up to 1000 bar (-15 to 45 psi up to 15,000 psi).

The LEO 3 loop powered pressure gauge is externally protected to IP65 and a Binder 723 5 pin connector on the back of the case provides connection for the series loop or digital interface. The plastic case can be further protected from impact via an optional rubber protection boot cover.

Using the optional PC software the 4-20mA analogue output can be altered to a different scaling. Pressure readings can also be transmitted directly to a computer and recorded without the need to connect the 4-20mA current loop circuit.
