Electrical Specifications: (23℃±5℃)
Ground Resistance (Auto range):
Range | Resolution | Accuracy of Reading1 |
0.025 - 0.250 | 0.002 | ± 1.5% ± 0.05 |
0.251 - 1.000 | 0.02 | ± 1.5% ± 0.05 |
1.001 – 10.00 | 0.02 | ± 1.5% ± 0.1 |
10.01 - 50.00 | 0.04 | ±2.0% ± 0.3 |
50.01 – 100.0 | 0.04 | ±2.0% ± 0.5 |
100.1 - 200.0 | 0.4 | ± 3.0% ± 1.0 |
200.1 - 400.0 | 2 | ± 5.0% ± 5 |
400.1 - 600.0 | 5 | ± 10% ± 10 |
600.1 – 1500 | 20 | ± 20% |
1 Loop resistance noninductive, external field < 50 A/m, external electrical field < 1 V/m, conductor centered.
2 Resistance Measurement Frequency: 3.333KHz
High and Low Alarm
| Range | Resolution |
High Alarm | 0 - 1510 | 1 |
Lo Alarm | 0 - 1510 | 1 |
Ground/ Leakage Current (Auto range, 50/60 Hz, True RMS, Crest Factor < 3.0)
Range | Resolution | Accuracy of Reading |
0.300 - 1.000 mA | 0.001 mA | ± 2.0% ± 0.05 mA |
1.00 - 10.00 mA | 0.01 mA | ± 2.0% ± 0.03 mA |
10.0 - 100.0 mA | 0.1 mA | ± 2.0% ± 0.3 mA |
100 – 1000 mA | 1 mA | ± 2.0% ± 3 mA |
Ground/ Leakage Current (50/60 Hz, True RMS, Crest Factor < 3.0)
Range | Resolution | Accuracy of Reading |
0.200 – 4.000 A | 0.001 A | ± 2.0% ± 0.03 A |
4.00 – 30.00 A | 0.01 A | ± 3.0% ± 0.03 A |
Accuracy of Resistance Calibration Plate: ±1%
Data Logging Capacity：116 records

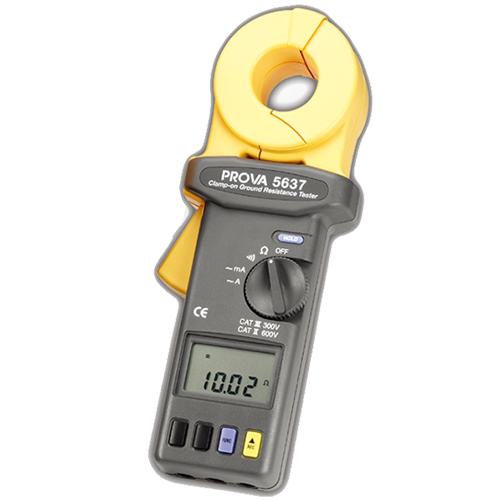

<PROVA-5637 Clamp-on Ground Resistance Tester
- Brand: TES
- Product Code: PROVA-5637
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
