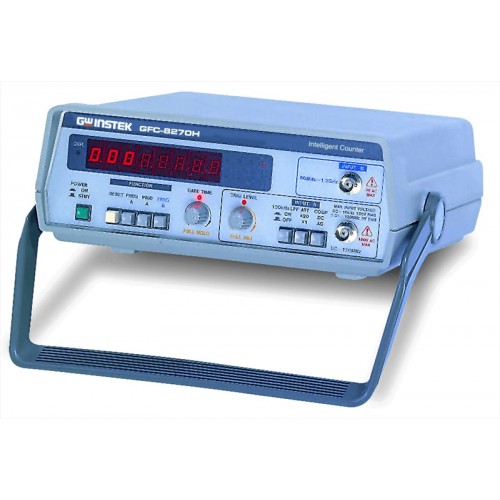

• GW INSTEK GFC-8270H & GFC-8131H
GW Instek 8000 Series adalah frekuensi counter dengan2 channel output. Channel pertama untuk frekuensi rendah dan channel kedua untuk frekuensi tinggi. Dengan resolusi hingga 0.1Hz memungkinkan anda mengatur frekuensi output dengan lebih fleksibel sesuai kebutuhan. SIlahkan hubungi kami untuk info harga dan stock.
Features
    • Frequency and Period Measurement
      High Resolution at Both High and Low Frequency
      0.01Hz~2.7GHz Frequency Range(GFC-8270H)
      0.01Hz~1.3GHz Frequency Range(GFC-8131H)
      10mV rms High Sensitivity
      100nHz Resolution for 1Hz Input
      Variable Trigger Level Control
      Microprocessor Controlled Intelligent Counter(only GFC-8270H)
  • The GFC-8000 Series performs virtually all of the counting measurements required in laboratories, in terms of both period and frequency. A bright red 8 digit LED display with an included overflow indicator provides a clear view. Both models feature a stable time base with a maximum resolution of 100nHz and 10nS at 1Hz for frequency and period measurement, respectively. Gate time can be configured for fast response (5 digits/10ms) or accuracy (7 digits/s) for more control. For high frequency needs, the GFC-8270H can operate at up to 2.7GHz. The GFC-8000 Series features easy operation with a simple front panel interface, suitable for both portable and bench-top use.

  • Download datasheet

Write a review

Note: HTML is not translated!
    Bad           Good

GW INSTEK GFC-8270H & GFC-8131H

  • Product Code: GFC-8270H & GFC-8131H
