DISCONTINUED

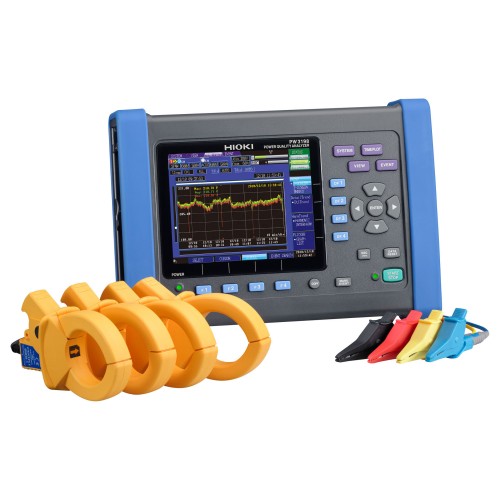

HIOKI PW3198 adalah power quality analyzer class A dengan akurasi tinggi. Sangat sesuai digunakan oleh energy auditor maupun departemen utility yang concern terhadap komsumsi dan efisiensi energi serta kualitas listrik.

Dapat mengukur berbagai macam parameter seperti energi, power faktor, harmonisa, dan kejadian-kejadian tak terduga seperti flicker, dip, swell, trip, transien, dan lain-lain.

Kelebihan dari unit ini adalah isolated antar channel, tersedia 4 channel arus dan tegangan yang memungkinkan melakukan pengukuran 1P2W maupun 3P4W. Serta dapat mengukur tegangan ac dan dc secara bersamaan.

Download datasheet

Hioki portable power meters and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. Key Features • Verify power problems in accordance with the IEC61000-4-30 Class A standard • High accuracy and continuous gapless recording (V: ±0.1% of nominal voltage, A and W: ±0.2% rdg. ±0.1% f.s.) • CAT IV 600V - safe enough for incoming power lines • Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz • Wide dynamic range from low voltages up to 1300V (3P4W line-to-line voltage) • Maximum 6000V transient overvoltage up to 700kHz • LAN, USB and SD card interfaces • Optional GPS BOX for synchronizing multiple devices
