Mobile active/reactive power meter CS PM 600

available up to 100 A or 600 A. Measures voltage, current and calculates:

• Active power [kW]
• Apparent power [kVA]
• Reactive power [kVar]
• Active energy [kWh]
• cos phi

All measured data are transferred digitally (Modbus) to DS 500 mobile/ DS 400 mobile and can be recorded there.

Special features of CS PM 600

• Magnetic voltage measuring tips for measuring the voltage during operation
• Hinged current transformers encompass the conductors of the phases L1, L2, L3. This can also be done during operation

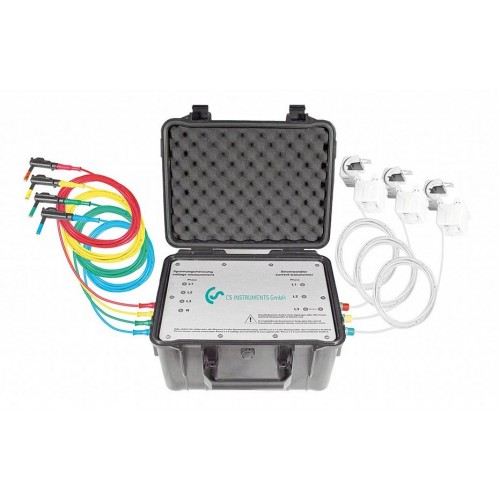

Included in the shipment of CS PM 600:

• Mobile current/effective power meter with 3 external current transformers for big machines and plants
• External current transformers for clamping around the phases (100 A or 600 A)
• External magnetic measuring tip for measuring the voltage
• Incl. connection cable for mobile current/effective power meter for mobile instruments, 5 m
