  • Compliant with IEC 61672-1 class 1 standard.
  • Real-time 1/1-Octave and 1/3-Octave analysis.
  • Measurement can be started by internal or external trigger.
  • Comparator output to trigger external devices.
  • Super high – contrast backlight TFT – LCD color display.
  • Dynamic range of 90dB.
  • AC and DC outputs.
  • Data transfer using USB.
  • micro SD CARD 4GB.


    • Specification

    Applicable standards

    IEC61672-1:2002 Class 1, ANSI S1.4:1983 Type 1,

    ANSI S1.11 – 2004 Class 1, IEC61260: 1995 Class 1,

    ANSI S1.43 – 1997 Type 1

    Microphone

    1/2-inch Electret condenser microphone

    Measurement range

    30 to 130dB

    Measurement level range

    20 to 90dB, 20 to 100dB, 20 to 110dB, 30 to 120dB, 40 to 130dB

    Measurement function

    Lp , Leq , LE , Lmax , Lmin , L05 , L10 , L50 , L90 , L95

    Frequency range

    12.5Hz to 20KHz

    Frequency weighting

    A ,C and Z

    Time weighting

    Fast , Slow, τ=10ms, Impulse

    Accuracy

    ±0.7dB (ref 94dB @1KHz)

    Display

    3.5” 320x240 TFT – LCD display with back light

    1/1 Octave and 1/3 Octave band filters

    1/1 Octave band center frequencies : (11 bands)
    16Hz, 31.5Hz, 63Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz and 16KHz

    1/3 Octave band center frequencies : (33 bands)



    12.5Hz,

    16Hz,

    20Hz,

    25Hz,

    31.5Hz,

    40Hz,

    50Hz,

    63Hz,

    80Hz,



    100Hz,

    125Hz,

    160Hz,

    200Hz,

    250Hz,

    315Hz,

    400Hz,

    500Hz,

    630Hz,



    800Hz,

    1KHz,

    1.25KHz,

    1.6KHz,

    2KHz,

    2.5KHz,

    3.15KHz,

    4KHz,

    5KHz,



    6.3KHz,

    8KHz,

    10KHz

    12.5KHz,

    16KHz,

    20KHz









    Extension cable

    Available in lengths of 5m (TL-F47/5M) and 10m(TL-F47/10M)

    Memory capacity

    Manual (250 data sets), Auto (250 blocks on micro SD CARD 4GB)

    Signal output

    AC output   : 1 Vrms (at full scale)

    DC output  : 10mV/dB

    Power

    4 pcs of C size 1.5V (LR14) batteries

    External DC power supply

    6V, 1A

    Battery  life

    Approx. 2hrs

    Operating Temperature/Humidity

    Write a review

    Note: HTML is not translated!
        Bad           Good

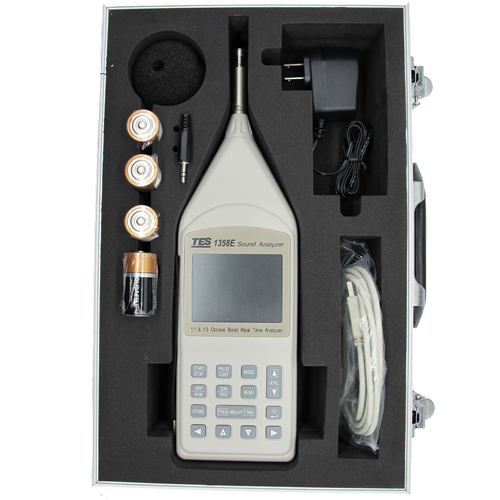

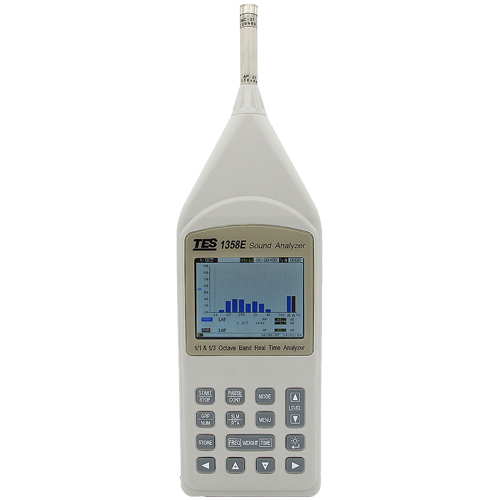

    TES-1358E Sound Analyzer

    • Brand: TES
    • Product Code: TES-1358E
    • Availability: Pre-Order
