TP-2606 switching mode DC power supply provides 375W output capacity with three independent outputs and CH1/CH2 two range output (30V/ 6A or 60V/3A), which accommodates a wide range of applications. On the basis of fixed output capacity, it enables output voltage or current to the maximum. With high power density and high conversion efficiency, multiple protections, high reliability, low noise and compact design, TP-2606 is completely adequate for satisfying mainstream power supply demands.
· CH1/ CH2 dualrange output of30V/6A or 60V/3A
· CH3 0.1~5V/3A, adjustable output
· Constant voltage and constant current operations
· Auto Series and Parallel tracking operations, providing flexible output of 30V/12A, 60V/6A or 120V/3A
· High power conversion efficiency, improving the power efficiency by 25%
· Manual and remote ON/OFF control
· Manualover voltageprotection
· Over voltage, over load, over temperature and reverse polarity protections
· Power source AC115V/230Vauto switch
· Fan speed control circuit, minimizing fan acoustic noise
·
Compact design, light weight

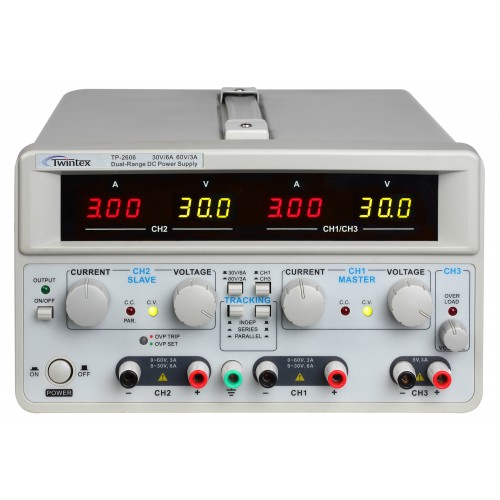

Twintex TP-2606 Multiple Output Dual-range Switching DC Power Supply
- Brand: TWINTEX
- Product Code: TP-2606
- Availability: Pre-Order
-
Rp.0.00
- Ex Tax: Rp.0.00
