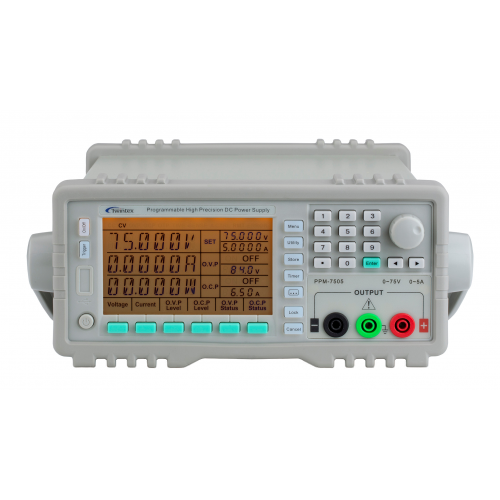

PPM series are high precision programmable DC power supply with single output / dual range, output power rated from 108W to 375W with various model numbers. PPM series are featured with low regulation 0.01%, low ripple and noise 1mVrms, automatic continuous or dynamic load change, battery charge function. MPU control, RS232/USB interface for PC control, SCPI programming, the PPM series facilitates easy auto test system and remote control.
· 0.01% low regulation, high accuracy & high resolution
· Over load, over voltage, over current, over temperature and reverse polarity protections
· CV and CC operations, auto CV and CC switch
· Automatic continuous or dynamic load change
· 1mVrms low ripple & noise
· 4.3-inch mono LCD display
· High speed rotary dial and keypad input
· Built-in beeper alarm
· Panel lock and output ON/OFF function
· List mode function, 100 sets save & recall for voltage, current and time setups, easy use in auto test
· Remote sense function
· Low resistance measurement function, display load resistance value
· Battery charge mode
· Standard RS232 interface, support SCPI commands, support Labview
· Optional RS485 interface, support ModBus
· Optional RS232-to-USB cable
· Optional 0-5V analog control
PPM-2010 | PPM-3010 | PPM-6005 | PPM-7503 | PPM-7505 | PPM-12001 | |
Rated output (0℃~40℃) | ||||||
Voltage | 0~20V | 0~30V | 0~60V | 0~75V | 0~75V | 0~120V |
Current | 0~10A | 0~10A | 0~5A | 0~3A | 0~5A | 0~1A |
OVP | 0.1~24V | 0.1~34V | 0.1~64V | 0.1~80V | 0.1~80V | 0.1~132V |
OCP | 0.1~11A | 0.1~11A | 0.1~5.5A | 0.1~3.5A | 0.1~5.5A | 0.1~1.1A |
Constant Voltage Operation | ||||||
Line regulation | ≤0.01%+3mV | |||||
Load regulation | ≤0.01%+3mV (I≤3A), ≤0.02%+5mV (I>3A) | |||||
Recovery time | ≤100us (50% load change, minimum load 0.5A) | |||||
Ripple & Noise | ≤1mV rms (I≤3A) (5Hz~1MHz), ≤2mV rms (I>3A) (5Hz~1MHz), ≤3mV rms (V≥75V)(5Hz~1MHz) | |||||
Temp. coefficient | ≤100ppm/℃ | |||||
