TP3300 series programmable DC power supply are light weight, adjustable, multi-functional work stations. They have three independent outputs: two with adjustable voltage level and one with fixed level selectable from 2.5V, 3.3V and 5V. The power supply can be used for logic circuits where various output voltage or current are needed, and for tracking mode definition systems where positive and negative voltages with good accuracy are required.
· Two independent adjustable outputs0~30V/0~3A x2
· One selectable output 2.5V/3.3V/5V/3A
· High resolution 1mV/1mA
· Constant voltage and constant current operations
· Digital panel control, Coarse/Fine volume control for voltage and current
· 4 sets panel settings save & recall
· Panel lock and output ON/OFF function
· Preset voltage and current
· Auto Series and Parallel tracking operations
· Intelligent cooling fan control
· USB interface for PC control
·
Support Labview
Model | TP-3303D | TP-3305D | |
Output | 0~30V/0~3A x2, fixed 2.5/3.3/5V3A x1 | 0~30V/0~5A x2, fixed 2.5/3.3/5V3A x1 | |
Constant voltage operation | |||
Line regulation | ≤0.01%+3mV | ||
Load regulation | ≤0.01%+3mV | ≤0.02%+5mV | |
Ripple&Noise | ≤1mVrms(5Hz~1MHz); | ≤2mVrms(5Hz~1MHz) | |
Recovery time | ≤100µs (50% load change, minimum load 0.5A) | ||
Constant current operation | |||
Line regulation | ≤0.2%+3mA | ||
Load regulation | ≤0.2%+3mA | ≤0.2%+5mA | |
Ripple&Noise | ≤3mArms | ≤6mArms | |
Tracking operation | |||
Parallel | Line regulation | ≤0.01%+3mV | |
Load regulation | ≤0.01%+5mV (I≤3A); ≤0.02%+10mV (I>3A) | ||
Serial | Line regulation | ≤0.01%+5mV | |
Load regulation | ≤300mV | ||
Tracking error | ≤0.5%+50mV (No load; with load, add load regulation ≤300mV) | ||
CH3 output | |||
Output voltage | 2.5V, 3.3V, 5V (selectable), ±8% | ||
Output current | 3A | ||
Line regulation | ≤25mV | ||
Load regulation | ≤25mV | ||
Ripple&Noise | ≤2mVrms | ||
Protection | Over load and reverse polarity protections | ||
Display | |||
Voltmeter | 32V full scale,LED display | ||
Ammeter | 3.2A full scale,LED display | ||
Setting accuracy | Voltage | ±(0.2%+3d) (0~9.99V); ±(0.5%+2d) (10~30V) | |
Current | ±(0.5%+2d) | ±(0.5%+5d) | |
Reading accuracy | Voltage | ±(0.2%+3d) (0~9.99V); ±(0.5%+2d) (10~30V) | |
Current | ±(0.5%+3d) | ±(0.5%+5d) | |
Protection | Over load, voltage limit, current limit and reverse polarity protections | ||
Insulation | Between base and output terminal≥20MΩ/500VDC | ||
Between base and power cord≥30MΩ/500VDC | |||

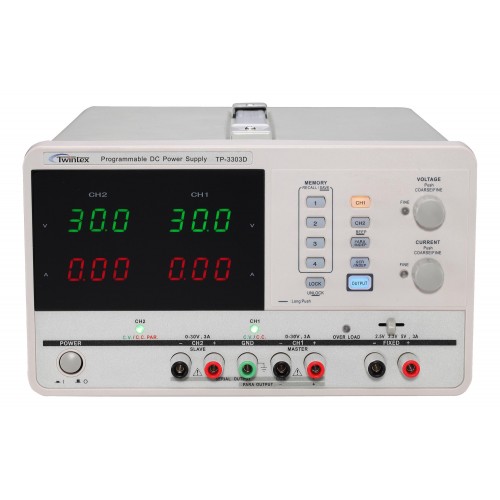

Twintex TP3300D Series Mulitple Output Programmable Linear DC Power Supply
