• 1 or 2 measuring channels available, with or without a probe
• Integrated, separable or cable probes made of 316L steel, used for temperature or temperature and humidity measurements
• Replaceable filter made of PTFE or 316L mesh, 25 µm
• Universal inputs of a very wide spectrum of analogue signal types (I, U, RTD, TC)
• Binary and analogue outputs for indicating and controlling (1 or 2 E REL, I, U)
• Very clear 2.9″ LCD display
• Indication of 1, 2, or 4 parameters on one screen
• Individual descriptions of measuring channels
• 3 Optional elaboration of personalised graphic units, displayed at measurements (e.g. m , l/h, kPa, °F, etc.)
• Standard equipment: RS-485 Modbus RTU interface for integration with superordinate visualisation or control systems
• Device configuration performed by means of local buttons, optional remote controller or free S-Config 2 software
• Operating temperature: -30°C ÷ +80°C
• IP rate protection: IP 67 (version without display), IP 65 (version with display)

Applications

• Food processing Industry
• Building HVAC automation
• Warehouses and cold rooms
• Greenhouses and breeding
• Factories and manufacturing
• Museums, archives and galleries
• Server rooms and air-conditioned rooms

• Weather stations

  Measurement

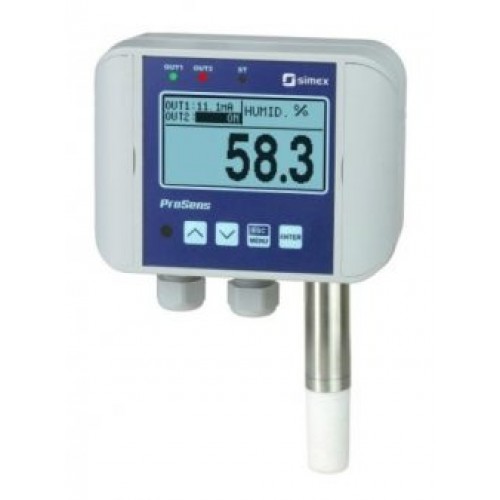

  The primary functionality of ProSens is taking measurements. Depending on needs and requirements, this compact device is equipped with top quality, precise and stable temperature and humidity sensors and/or with universal inputs that are standard for industrial automation. Thanks to its equipment the device guarantees a very high level of measurement reliability. Both version of probes – integrated and cable ones – are made of stainless steel. The sensors are protected with a replaceable PTFE or stainless steel mesh filter. The filter type is adjusted to a particular version of the probe.
