Product Parameters

• Display: Red LED with 4 x 20mm digits
• Input Signal: Single channel 4-20mA, 0-20mA
• Input Accuracy: 0.25% FS + 1 digit
• Measuring Range: -999 to 9999
• Alarms: Relays rated to 1A/250Vac or open collector
• Configuration: Front panel keypad or optional remote control
• Power Supply: 230Vac +/-10%, 110Vac, 24Vdc or 24ac
• Operating Temperature Range: 0 to 50 degC
• Environmental Protection: IP65
• Materials: ABS and glass fibre
• Dimensions: 110 x 80 x 67 mm
• Installation: Wall mounted
• Special Features: RS485, Modbus RTU digital communications
• Special Options: Infra-red remote control for configuration purposes, operating temp from -20 to +50 degC

Product Description

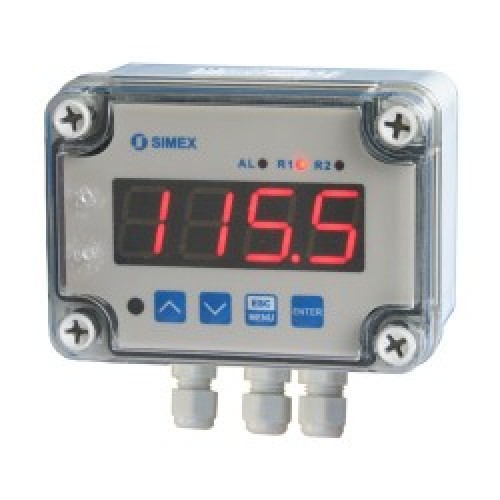

The SRP N118 IP65 protected digital indicator can be used to power and read the output of any type sensor that has a 4-20mA current loop including pressure, liquid level, temperature, flow, etc…. The sensor can be calibrated to provide a linear conversion to any engineering units as long as they can be represented as 4 digits.

For non-linear applications, such as measuring the volume of liquid in a cylindrical tank with a level sensor, up to 20 custom measurement points can be entered into the SRPN118 signal conditioning indicator. For dp flow applications a square root extraction formula can be applied so that the readings can be converted from the linear dp signal into a linear reading of flow.

For switch on and turn off control two user settable alarm relays are available as standard. For example the relay switches can be used to control the level in a water tank or provide a warning if the water level is too low or too high.
