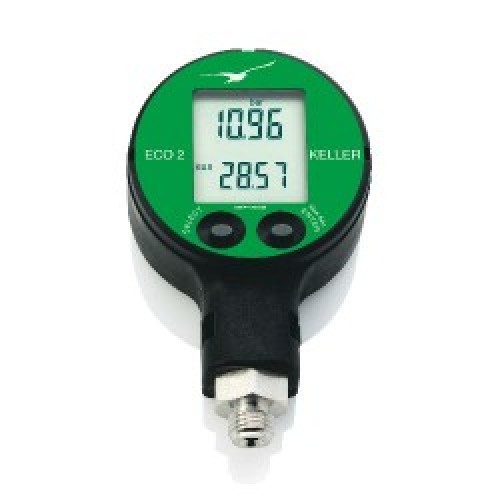

• SensorsOne ECO1 / ECO 1 Ei / ECO 2 Low Cost Digital Manometer

Product Parameters

  • Pressure Ranges: -1 to 30 bar sg/31 bar absolute or 300 bar sealed gauge/absolute
  • Accuracy: ±1% full scale max
  • Power Supply: 3 volt CR2430 battery
  • Display: 4 digit LCD
  • Environmental Protection: IP65
  • Dimensions: 59 x 95 x 32 mm
  • Weight: 125 g
  • Pressure Connection: 1/4 inch BSP or NPT male with swivel joint
  • Special Options: ATEX certification to II 1 G EEx ia IIC T6 or T5, traceable or UKAS cal certs

Product Description

The ECO 1 / ECO 2 digital pressure gauge is compact and low cost for many general purpose pressure checking applications which require industrial grade performance on a small budget.

The pressure is displayed bar pressure units from a 4 digit LCD display and the zero tare, peak and valley hold and auto off setting are all accessed via the 2 push buttons located just below the LCD display.

The ECO1 / ECO 2 digital pressure gauge is powered by a small 3 volt CR2430 battery which lasts up to 1000 hours in continuous use. A 1/4 inch BSP or NPT male swivel joint pressure adaptor is supplied to allow the digital pressure gauge to be orientated for optimum viewing of the display.

Download Datasheet ECO2

Download Datasheet ECO1
