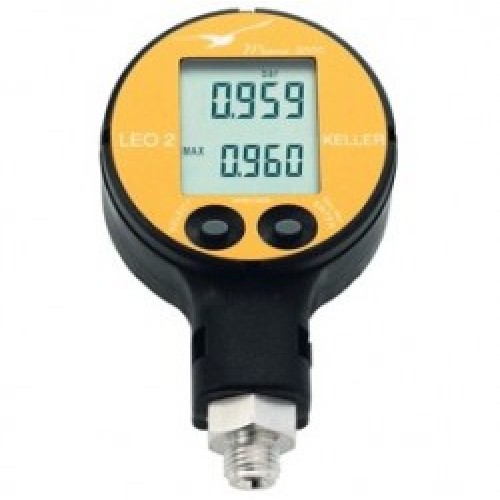

• SensorsOne LEO 2 (Ei) Digital Manometer

Product Parameters

  • Pressure Ranges: -1 to 3 bar sg/4 bar abs, -1 to 10 bar sg/11 bar abs, -1 to 30 bar sg/31 bar abs, 300 bar sg or 700 bar sg
  • Accuracy: 0.1% FS at room temp, 0.2% FS including 0 to 50°C temp errors
  • Display: 41/2 digit LCD
  • Power Supply: 3V battery, type CR2430, 1000 hours continuous battery life
  • Dimensions: 59mm x 95mm x 32mm
  • Weight: approx 125 g
  • Environmental Protection: IP65
  • Pressure Connection: G1/4 or 1/4NPT male with swivel joint
  • Special Features: Easy to use zero tare facility to convert from absolute to gauge reference reading, 6 selectable pressure units
  • Special Options: ATEX approved version available II 1 G EEx ia IIC T6 or T5, protective rubber boot, traceable or UKAS cal cert, SF6 temperature compensated reading

Product Description

0.1% accuracy battery powered digital pressure gauge with intrinsic safety option for hazardous areas.

This handy alternative to traditional analogue dial pressure gauges can be permanently fitted as a local pressure indicator or can be carried around and used as a master test gauge comparator. When mounted on top of a pneumatic or hydraulic hand pump the LEO 2 digital test gauge instantly becomes a portable pressure calibrator.

Download Datasheet
