WIPC22/4-35/16 - Short circuiting and grounding equipment for LV electric cabins
Description

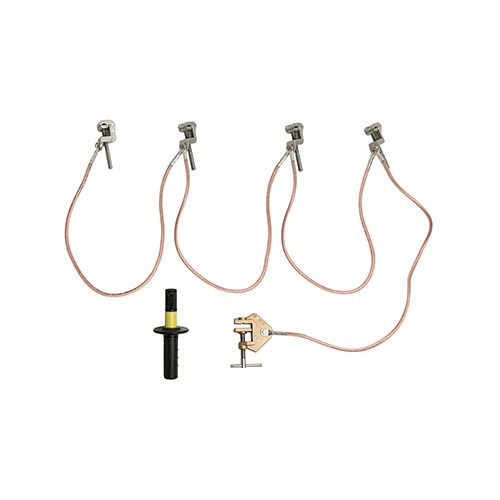

Equipment contents
- 4 forged brass contact clamps type PC22 with hexagonal tang.
- Clamping capacity:
- Round conductors Ø up to 22 mm;
- Flat conductors up to 22 mm.
- 3 short circuit extraflexible electrolytic copper cables covered by transparent rubber sheath, section 35 mm2, length 0.6 m.
- Ground extraflexible electrolytic copper cable covered by transparent rubber sheath, section 16 mm2, length 2 m.
- Forged brass earth clamp, clamping capacity up to 33 mm type MT33.
- Insulating handle for contact clamp type MPP1/020EF certified IEC 61235. Length 20 cm with attack for hexagonal and threaded M10 tangs.
|
Alternative versions: |
|||
|
WIPC22/4-25/16 |
Cables section 25 mm² |
CEI EN 61230 |
ICC 7.25 kA / 1 s |
|
WIPC22/4-59/16 |
Cables section 50 mm² |
CEI EN 61230 |
ICC 12.4 kA / 1 s |
WORK ITALIA WIPC22/4-35/16 - Short circuiting and grounding equipment for LV electric cabins
- Product Code: WIPC22/4-35/16
