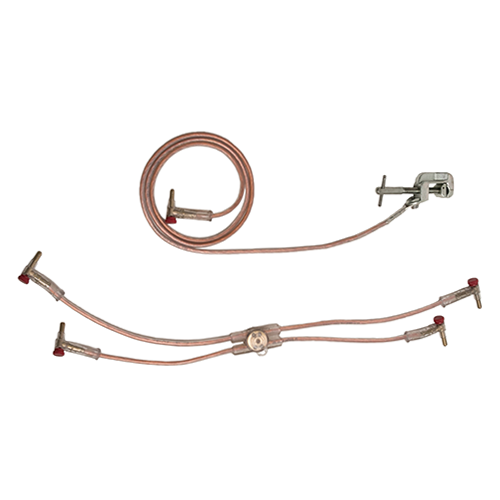

WBT 127 - Short circuiting and grounding equipment for LV insulated conductors in correspondence of fixed points suitable for insulation piercing

Description

Equipment contents

• Copper alloy connecting plugs, expansion screw steel with high insulation plastic handle. Protective covering by high insulation uncoloured material.
• Short circuit cables section 16 mm², length 0.6 and 0.75 m, made of electrolytic copper covered by transparent plastic sheath.
• Ground cable section 16 mm² made of electrolytic copper covered by transparent plastic sheath, length 2 m.
• Copper alloy short circuit central connector with central socket for introduction of the grounding expansion connecting plug. Protective covering by high insulating transparent uncoloured material by high insulating transparent uncoloured material.
• Forged brass earth clamp, clamping capacity up to 22 mm, type MT22.
• Rigid plastic case type 170/30.
